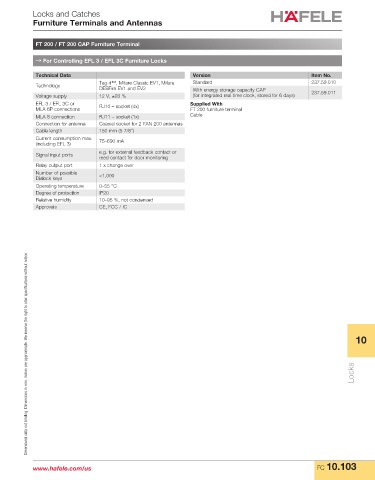

P. 1127
Locks and Catches
Furniture Terminals and Antennas
FT 200 / FT 200 CAP Furniture Terminal
→ For Controlling EFL 3 / EFL 3C Furniture Locks
Technical Data Version Item No.
Tag-it™, Mifare Classic EV1, Mifare Standard 237.59.010
Technology
DESFire EV1 and EV2 With energy storage capacity CAP
Voltage supply 12 V, ±20 % (for integrated real time clock, stored for 6 days) 237.59.011
EFL 3 / EFL 3C or Supplied With
MLA 6P connections RJ10 – socket (4x) FT 200 furniture terminal
MLA 8 connection RJ11 – socket (1x) Cable
Connection for antenna Coaxial socket for 2 FAN 200 antennas
Cable length 150 mm (5 7/8")
Current consumption max. 75–690 mA
(including EFL 3)
e.g. for external feedback contact or
Signal input ports
reed contact for door monitoring
Relay output port 1 x change over
Number of possible <1,000
Dialock keys
Operating temperature 0–55 °C
Degree of protection IP20
Relative humidity 10–95 %, not condensed
Approvals CE, FCC / IC
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
10
Locks
www.hafele.com/us FC 10.103
