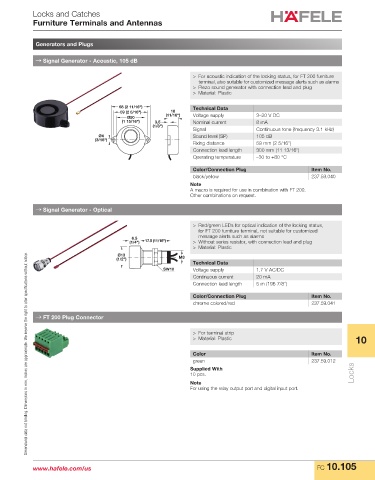

Locks and Catches
Furniture Terminals and Antennas

Generators and Plugs

→ Signal Generator - Acoustic, 105 dB

> For acoustic indication of the locking status, for FT 200 furniture
terminal, also suitable for customized message alerts such as alarms
> Piezo sound generator with connection lead and plug
> Material: Plastic

68 (2 11/16") Technical Data
59 (2 5/16") 18
Ø50 (11/16") Voltage supply 3–20 V DC
(1 15/16") 3.5 Nominal current 8 mA
(1/8")
Signal Continuous tone (frequency 3.1 kHz)
Ø4 Sound level (SP) 105 dB
(3/16")
Fixing distance 59 mm (2 5/16")
Connection lead length 300 mm (11 13/16")
Operating temperature –30 to +80 °C

Color/Connection Plug Item No.
black/yellow 237.59.040
Note
A macro is required for use in combination with FT 200.
Other combinations on request.

→ Signal Generator - Optical

> Red/green LEDs for optical indication of the locking status,
for FT 200 furniture terminal, not suitable for customized
message alerts such as alarms
6.5
(1/4") 17.5 (11/16") > Without series resistor, with connection lead and plug
> Material: Plastic
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø13
(1/2") M8
Technical Data
SW10 Voltage supply 1.7 V AC/DC
Continuous current 20 mA
Connection lead length 5 m (196 7/8")
Color/Connection Plug Item No.
chrome colored/red 237.59.041

→ FT 200 Plug Connector

> For terminal strip
> Material: Plastic 10

Color Item No.
green 237.59.012
Supplied With
10 pcs. Locks
Note
For using the relay output port and digital input port.

www.hafele.com/us FC 10.105
