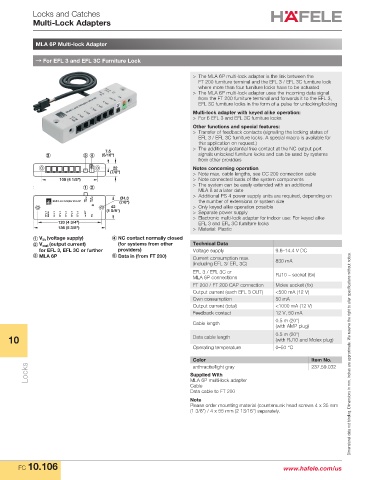

Locks and Catches
Multi-Lock Adapters

MLA 6P Multi-lock Adapter

→ For EFL 3 and EFL 3C Furniture Lock

> The MLA 6P multi-lock adapter is the link between the
FT 200 furniture terminal and the EFL 3 / EFL 3C furniture lock
where more than four furniture locks have to be actuated
> The MLA 6P multi-lock adapter uses the incoming data signal
from the FT 200 furniture terminal and forwards it to the EFL 3,
EFL 3C furniture locks in the form of a pulse for unlocking/locking
Multi-lock adapter with keyed alike operation:
> For 6 EFL 3 and EFL 3C furniture locks
Other functions and special features:
> Transfer of feedback contacts (signalling the locking status of
EFL 3 / EFL 3C furniture locks. A special macro is available for
this application on request.)
> The additional potential free contact at the NC output port
7.5
3 5 4 (5/16") signals unlocked furniture locks and can be used by systems
from other providers
22 Notes concerning operation
(7/8") > Note max. cable lengths, see CC 200 connection cable
105 (4 1/8") > Note connected loads of the system components
> The system can be easily extended with an additional
1 2
MLA 8 at a later date
> Additional PS 4 power supply units are required, depending on
Ø4.3
(7/8") the number of extensions or system size
42 > Only keyed alike operation possible
(1 5/8") > Separate power supply
> Electronic multi-lock adapter for indoor use: For keyed alike
120 (4 3/4") EFL 3 and EFL 3C furniture locks
136 (5 3/8") > Material: Plastic
1 V (voltage supply) 4 NC contact normally closed
in
2 V out (output current) (for systems from other Technical Data
for EFL 3, EFL 3C or further providers) Voltage supply 9.6–14.4 V DC
3 MLA 6P 5 Data in (from FT 200) Current consumption max.
(including EFL 3/ EFL 3C) 830 mA
EFL 3 / EFL 3C or RJ10 – socket (6x)
MLA 6P connections
FT 200 / FT 200 CAP connection Molex socket (1x)
Output current (each EFL 3 OUT) <500 mA (12 V)
Own consumption 50 mA
Output current (total) <1000 mA (12 V)
Feedback contact 12 V, 50 mA
0.5 m (20")
Cable length
(with AMP plug)
0.5 m (20")
10 Data cable length (with RJ10 and Molex plug)
Operating temperature 0–50 °C

Color Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks Supplied With 237.59.032
anthracite/light gray
MLA 6P multi-lock adapter
Cable
Data cable to FT 200
Note
Please order mounting material (countersunk head screws 4 x 35 mm
(1 3/8") / 4 x 55 mm (2 13/16") separately.

FC 10.106 www.hafele.com/us
