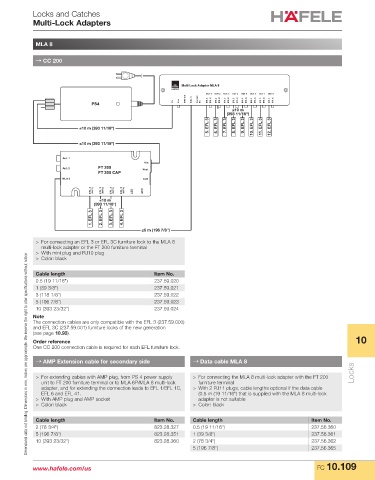

Locks and Catches
Multi-Lock Adapters

MLA 8

→ CC 200

≤10 m
(393 11/16")

≤10 m (393 11/16")

≤10 m (393 11/16")

≤10 m
(393 11/16")

≤5 m (196 7/8")

> For connecting an EFL 3 or EFL 3C furniture lock to the MLA 8
multi-lock adapter or the FT 200 furniture terminal
> With mini plug and RJ10 plug
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Color: black
Cable length Item No.
0.5 (19 11/16") 237.59.020
1 (39 3/8") 237.59.021
3 (118 1/8") 237.59.022
5 (196 7/8") 237.59.023
10 (393 23/32") 237.59.024
Note
The connection cables are only compatible with the EFL 3 (237.59.000)
and EFL 3C (237.59.001) furniture locks of the new generation
(see page 10.93).
Order reference 10
One CC 200 connection cable is required for each EFL furniture lock.

→ AMP Extension cable for secondary side → Data cable MLA 8

> For extending cables with AMP plug, from PS 4 power supply > For connecting the MLA 8 multi-lock adapter with the FT 200 Locks
unit to FT 200 furniture terminal or to MLA 6P/MLA 8 multi-lock furniture terminal
adapter, and for extending the connection leads to EFL 1/EFL 1C, > With 2 RJ11 plugs, cable lengths optional if the data cable
EFL 6 and EFL 41. (0.5 m (19 11/16") that is supplied with the MLA 8 multi-lock
> With AMP plug and AMP socket adapter is not suitable
> Color: black > Color: black

Cable length Item No. Cable length Item No.
2 (78 3/4") 823.28.327 0.5 (19 11/16") 237.56.360
5 (196 7/8") 823.28.351 1 (39 3/8") 237.56.361
10 (393 23/32") 823.28.360 2 (78 3/4") 237.56.362
5 (196 7/8") 237.56.365

www.hafele.com/us FC 10.109
