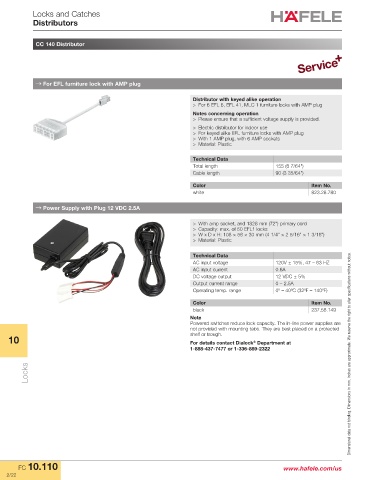

Locks and Catches
Distributors

CC 140 Distributor

→ For EFL furniture lock with AMP plug

Distributor with keyed alike operation
> For 6 EFL 6, EFL 41, MLC 1 furniture locks with AMP plug
Notes concerning operation
> Please ensure that a sufficient voltage supply is provided.
> Electric distributor for indoor use
> For keyed alike EFL furniture locks with AMP plug
> With 1 AMP plug, with 6 AMP sockets
> Material: Plastic

Technical Data
Total length 155 (6 7/64")
Cable length 90 (3 35/64")
Color Item No.
white 823.28.780

→ Power Supply with Plug 12 VDC 2.5A

> With amp socket, and 1828 mm (72") primary cord
> Capacity: max. of 50 EFL1 locks
> W x D x H: 108 × 58 × 30 mm (4 1/4" × 2 5/16" × 1 3/16")
> Material: Plastic

Technical Data
AC input voltage 120V ± 15%, 47 – 63 HZ
AC input current 0.6A
DC voltage output 12 VDC ± 5%
Output current range 0 – 2.5A
Operating temp. range 0º – 40ºC (32ºF – 140ºF)
Color Item No.
black 237.58.149
Note
Powered switches reduce lock capacity. The in-line power supplies are
not provided with mounting tabs. They are best placed on a protected
shelf or trough.
10 For details contact Dialock Department at
®
1-888-437-7477 or 1-336-889-2322 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
