Locks and Catches
Multi-Lock Adapters

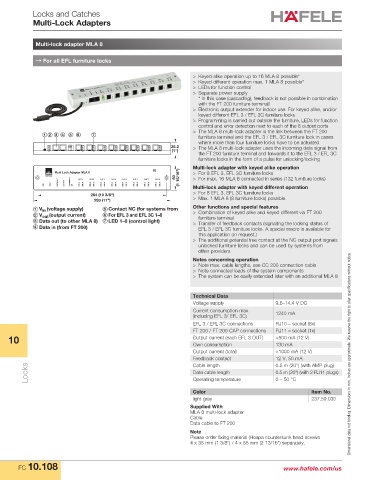

Multi-lock adapter MLA 8

→ For all EFL furniture locks

> Keyed alike operation up to 16 MLA 8 possible*
> Keyed different operation max. 1 MLA 8 possible*
> LEDs for function control
> Separate power supply
* In this case (cascading), feedback is not possible in combination
with the FT 200 furniture terminal!
> Electronic output extender for indoor use: For keyed alike, and/or
keyed different EFL 3 / EFL 3C furniture locks
> Programming is carried out outside the furniture, LEDs for function
control and error detection next to each of the 8 output ports
> The MLA 8 multi-lock adapter is the link between the FT 200
1 2 3 4 5 6 7 furniture terminal and the EFL 3 / EFL 3C furniture lock in cases
where more than four furniture locks have to be actuated
25.2 > The MLA 8 multi-lock adapter uses the incoming data signal from
(1")
the FT 200 furniture terminal and forwards it to the EFL 3 / EFL 3C
furniture locks in the form of a pulse for unlocking/locking
Multi-lock adapter with keyed alike operation
(1 15/16") > For 8 EFL 3, EFL 3C furniture locks
50 > For max. 16 MLA 8 connected in series (132 furniture locks)
Multi-lock adapter with keyed different operation
> For 8 EFL 3, EFL 3C furniture locks
264 (10 3/8")
280 (11") > Max. 1 MLA 8 (8 furniture locks) possible.
1 V (voltage supply) 5 Contact NC (for systems from Other functions and special features
in
> Combination of keyed alike and keyed different via FT 200
2 V out (output current) 6 For EFL 3 and EFL 3C 1–8 furniture terminal
3 Data out (to other MLA 8) 7 LED 1–8 (control light) > Transfer of feedback contacts (signalling the locking status of
4 Data in (from FT 200) EFL 3 / EFL 3C furniture locks. A special macro is available for
this application on request.)
> The additional potential free contact at the NC output port signals
unlocked furniture locks and can be used by systems from
other providers
Notes concerning operation
> Note max. cable lengths, see CC 200 connection cable
> Note connected loads of the system components
> The system can be easily extended later with an additional MLA 8

Technical Data
Voltage supply 9.6–14.4 V DC
Current consumption max. 1240 mA
(including EFL 3/ EFL 3C)
EFL 3 / EFL 3C connections RJ10 – socket (8x)
FT 200 / FT 200 CAP connections RJ11 – socket (1x)
10 Output current (each EFL 3 OUT) <500 mA (12 V)
Own consumption 130 mA
Output current (total) <1000 mA (12 V) Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Feedback contact 12 V, 50 mA
0.5 m (20") (with AMP plug)
Locks Data cable length 0.5 m (20") (with 2 RJ11 plugs)
Cable length
0 – 50 °C
Operating temperature
Color Item No.
light gray 237.59.030
Supplied With
MLA 8 multi-lock adapter
Cable
Data cable to FT 200
Note
Please order fixing material (Hospa countersunk head screws
4 x 35 mm (1 3/8") / 4 x 55 mm (2 13/16") separately.

FC 10.108 www.hafele.com/us
