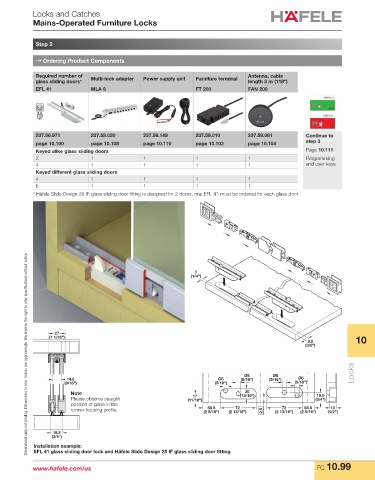

Page 1123 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Locks and Catches
Mains-Operated Furniture Locks

Step 2

→ Ordering Product Components

Required number of Multi-lock adapter Power supply unit Furniture terminal Antenna, cable
glass sliding doors* length 3 m (118")
EFL 41 MLA 8 FT 200 FAN 200

237.56.971 237.59.030 237.58.149 237.59.010 237.59.061 Continue to
page 10.100 page 10.108 page 10.110 page 10.102 page 10.104 step 3
Keyed alike glass sliding doors Page 10.111
2 1 1 1 1 Programming
4 1 1 1 1 and user keys
Keyed different glass sliding doors
4 1 1 1 1
6 1 1 1 1
* Häfele Slido Design 25 IF glass sliding door fitting is designed for 2 doors, one EFL 41 must be ordered for each glass door.

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

7
(1/4")

27
(1 1/16")
9.5 10
(3/8")

Ø8 Ø8 Locks
14.5 Ø8 (5/16") (5/16") Ø8
(9/16") (5/16") (5/16")
Note 20 19.5
17
Please observe straight (11/16") (13/16") (3/4")
position of glass in the
58.5
72
58.5
13
72
runner housing profile. (2 5/16") (2 13/16") (2 13/16") (2 5/16") (1/2")
18.5
(3/4")
Installation example:
EFL 41 glass sliding door lock and Häfele Slido Design 25 IF glass sliding door fitting
