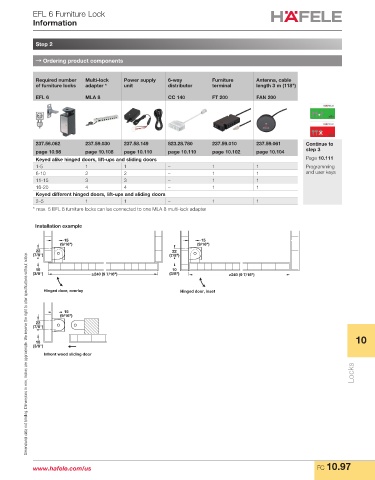

EFL 6 Furniture Lock
Information
Step 2
→ Ordering product components
Required number Multi-lock Power supply 6-way Furniture Antenna, cable
of furniture locks adapter * unit distributor terminal length 3 m (118")
EFL 6 MLA 8 CC 140 FT 200 FAN 200
237.56.062 237.59.030 237.58.149 823.28.780 237.59.010 237.59.061 Continue to
page 10.98 page 10.108 page 10.110 page 10.110 page 10.102 page 10.104 step 3
Keyed alike hinged doors, lift-ups and sliding doors Page 10.111
1-5 1 1 – 1 1 Programming
6-10 2 2 – 1 1 and user keys
11-15 3 3 – 1 1
16-20 4 4 – 1 1
Keyed different hinged doors, lift-ups and sliding doors
2–5 1 1 – 1 1
* max. 5 EFL 6 furniture locks can be connected to one MLA 8 multi-lock adapter
Installation example
15 15
(9/16") (9/16")
22 22
