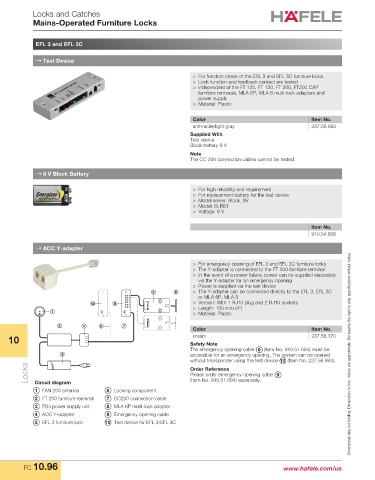

Locks and Catches
Mains-Operated Furniture Locks
EFL 3 and EFL 3C
→ Test Device
→ 9 V Block Battery
→ ACC Y-adapter
10
Locks
Circuit diagram
1 FAN 200 antenna 6 Locking component
2 FT 200 furniture terminal 7 CC200 connection cable
3 PS4 power supply unit 8 MLA 6P multi-lock adapter
4 ACC Y-adapter 9 Emergency opening cable
5 EFL 3 furniture lock 10
FC 10.96
> For function check of the EFL 3 and EFL 3C furniture locks
> Lock function and feedback contact are tested
> Independent of the FT 120, FT 130, FT 200, FT200 CAP
furniture terminals, MLA 6P, MLA 8 multi-lock adapters and
power supply
> Material: Plastic
Color Item No.
anthracite/light gray 237.56.993
Supplied With
Test device
Block battery 9 V
Note
The CC 200 connection cables cannot be tested.
> For high reliability and requirement
> For replacement battery for the test device
> Model series: Block, 9V
> Model: 6LR61
> Voltage: 9 V
Item No.
910.54.956
> For emergency opening of EFL 3 and EFL 3C furniture locks
> The Y-adapter is connected to the FT 200 furniture terminal
> In the event of a power failure, power can be supplied separately
via the Y-adapter for an emergency opening
> Power is supplied via the test device
> The Y-adapter can be connected directly to the EFL 3, EFL 3C
ELF 3 or MLA 6P, MLA 8
ELF 3
ELF 3
ELF 3 > Version: With 1 RJ10 plug and 2 RJ10 sockets
ELF 3
ELF 3 > Length: 100 mm (4")
> Material: Plastic
Color Item No.
cream
Safety Note 237.56.370
The emergency opening cable 9 (Item No. 910.51.094) must be
accessible for an emergency opening. The system can be opened Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
without transponder using the test device 10 (Item No. 237.56.993).
(Item No. 910.51.094) separately.
Order Reference
Please order emergency opening cable 9
Test device for EFL 3/EFL 3C
www.hafele.com/us
