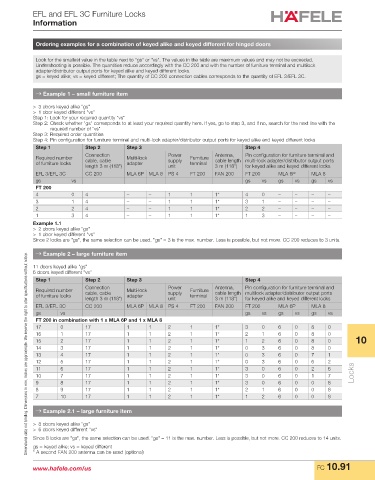

EFL and EFL 3C Furniture Locks
Information

Ordering examples for a combination of keyed alike and keyed different for hinged doors

Look for the smallest value in the table next to "gs" or "vs". The values in the table are maximum values and may not be exceeded.
Undershooting is possible. The quantities reduce accordingly with the CC 200 and with the number of furniture terminal and multilock
adapter/distributor output ports for keyed alike and keyed different locks.
gs = keyed alike; vs = keyed different; The quantity of CC 200 connection cables corresponds to the quantity of EFL 3/EFL 3C.

→ Example 1 – small furniture item

> 3 doors keyed alike "gs"
> 1 door keyed different "vs"
Step 1: Look for your required quantity "vs"
Step 2: Check whether "gs" corresponds to at least your required quantity here. If yes, go to step 3, and if no, search for the next line with the
required number of "vs"
Step 3: Required order quantities
Step 4: Pin configuration for furniture terminal and multi-lock adapter/distributor output ports for keyed alike and keyed different locks
Step 1 Step 2 Step 3 Step 4

Required number Connection Multi-lock Power Furniture Antenna, Pin configuration for furniture terminal and
of furniture locks cable, cable adapter supply terminal cable length multi-lock adapter/distributor output ports
length 3 m (118") unit 3 m (118") for keyed alike and keyed different locks
EFL 3/EFL 3C CC 200 MLA 6P MLA 8 PS 4 FT 200 FAN 200 FT 200 MLA 6P MLA 8
gs vs gs vs gs vs gs vs
FT 200
4 0 4 – – 1 1 1* 4 0 – – – –
3 1 4 – – 1 1 1* 3 1 – – – –
2 2 4 – – 1 1 1* 2 2 – – – –
1 3 4 – – 1 1 1* 1 3 – – – –
Example 1.1
> 2 doors keyed alike "gs"
> 1 door keyed different "vs"
Since 2 locks are "gs", the same selection can be used. "gs" = 3 is the max. number. Less is possible, but not more. CC 200 reduces to 3 units.

→ Example 2 – large furniture item
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
11 doors keyed alike "gs"
6 doors keyed different "vs"
Step 1 Step 2 Step 3 Step 4
Required number Connection Multi-lock Power Furniture Antenna, Pin configuration for furniture terminal and
of furniture locks cable, cable adapter supply terminal cable length multilock adapter/distributor output ports
length 3 m (118") unit 3 m (118") for keyed alike and keyed different locks
EFL 3/EFL 3C CC 200 MLA 6P MLA 8 PS 4 FT 200 FAN 200 FT 200 MLA 6P MLA 8
gs vs gs vs gs vs gs vs
FT 200 in combination with 1 x MLA 6P and 1 x MLA 8
17 0 17 1 1 2 1 1* 3 0 6 0 8 0
16 1 17 1 1 2 1 1* 2 1 6 0 8 0
15 2 17 1 1 2 1 1* 1 2 6 0 8 0 10
14 3 17 1 1 2 1 1* 0 3 6 0 8 0
13 4 17 1 1 2 1 1* 0 3 6 0 7 1
12 5 17 1 1 2 1 1* 0 3 6 0 6 2
11 6 17 1 1 2 1 1* 3 0 6 0 2 6
10 7 17 1 1 2 1 1* 3 0 6 0 1 7 Locks
9 8 17 1 1 2 1 1* 3 0 6 0 0 8
8 9 17 1 1 2 1 1* 2 1 6 0 0 8
7 10 17 1 1 2 1 1* 1 2 6 0 0 8

→ Example 2.1 – large furniture item

> 8 doors keyed alike "gs"
> 6 doors keyed different "vs"
Since 8 locks are "gs", the same selection can be used. "gs" = 11 is the max. number. Less is possible, but not more. CC 200 reduces to 14 units.
gs = keyed alike; vs = keyed different
* A second FAN 200 antenna can be used (optional)
