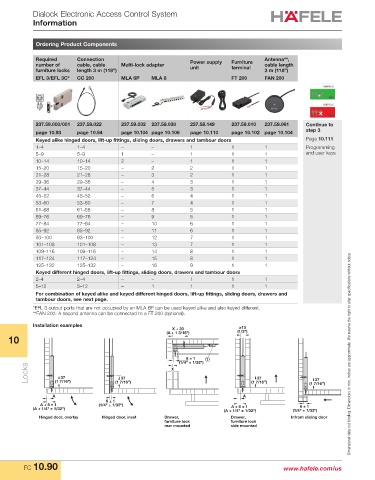

Dialock Electronic Access Control System
Information

Ordering Product Components

Required Connection Power supply Furniture Antenna**,
number of cable, cable Multi-lock adapter unit terminal cable length
furniture locks length 3 m (118") 3 m (118")
EFL 3/EFL 3C* CC 200 MLA 6P MLA 8 FT 200 FAN 200

237.59.000/001 237.59.022 237.59.032 237.59.030 237.58.149 237.59.010 237.59.061 Continue to
page 10.93 page 10.94 page 10.104 page 10.106 page 10.110 page 10.102 page 10.104 step 3
Keyed alike hinged doors, lift-up fittings, sliding doors, drawers and tambour doors Page 10.111
1–4 1–4 – – 1 1 1 Programming
5–9 5–9 1 – 1 1 1 and user keys
10–14 10–14 2 – 1 1 1
15–20 15–20 – 2 2 1 1
21–28 21–28 – 3 2 1 1
29–36 29–36 – 4 3 1 1
37–44 37–44 – 5 3 1 1
45–52 45–52 – 6 4 1 1
53–60 53–60 – 7 4 1 1
61–68 61–68 – 8 5 1 1
69–76 69–76 – 9 5 1 1
77–84 77–84 – 10 6 1 1
85–92 85–92 – 11 6 1 1
93–100 93–100 – 12 7 1 1
101–108 101–108 – 13 7 1 1
109–116 109–116 – 14 8 1 1
117–124 117–124 – 15 8 1 1
125–132 125–132 – 16 9 1 1
Keyed different hinged doors, lift-up fittings, sliding doors, drawers and tambour doors
2–4 2–4 – – 1 1 1
5–12 5–12 – 1 1 1 1
For combination of keyed alike and keyed different hinged doors, lift-up fittings, sliding doors, drawers and
tambour doors, see next page.
*EFL 3 output ports that are not occupied by an MLA 6P can be used keyed alike and also keyed different.
**FAN 200: A second antenna can be connected to a FT 200 (optional).

Installation examples
X + 30 ≥13
(A + 1 3/16") (1/2")
10

6 ± 1 1 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1/4" ± 1/32")
Locks (1 7/16") (1 7/16") X (1 7/16") (1 7/16")
37
37
37
37
A A
6 ± 1
A + 6 ± 1 (1/4" ± 1/32") A + 6 ± 1 6 ± 1
(A + 1/4" ± 1/32") (A + 1/4" ± 1/32") (1/4" ± 1/32")
Hinged door, overlay Hinged door, inset Drawer, Drawer, Infront sliding door
furniture lock furniture lock
rear mounted side mounted

FC 10.90 www.hafele.com/us
