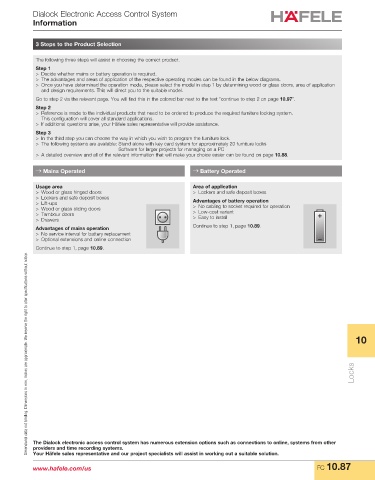

Dialock Electronic Access Control System
Information

3 Steps to the Product Selection

The following three steps will assist in choosing the correct product.
Step 1
> Decide whether mains or battery operation is required.
> The advantages and areas of application of the respective operating modes can be found in the below diagrams.
> Once you have determined the operation mode, please select the model in step 1 by determining wood or glass doors, area of application
and design requirements. This will direct you to the suitable model.
Go to step 2 via the relevant page. You will find this in the colored bar next to the text “continue to step 2 on page 10.97”.
Step 2
> Reference is made to the individual products that need to be ordered to produce the required furniture locking system.
This configuration will cover all standard applications.
> If additional questions arise, your Häfele sales representative will provide assistance.
Step 3
> In the third step you can choose the way in which you wish to program the furniture lock.
> The following systems are available: Stand alone with key card system for approximately 20 furniture locks
Software for larger projects for managing on a PC
> A detailed overview and all of the relevant information that will make your choice easier can be found on page 10.88.

→ Mains Operated → Battery Operated

Usage area Area of application
> Wood or glass hinged doors > Lockers and safe deposit boxes
> Lockers and safe deposit boxes
> Lift-ups Advantages of battery operation
> Wood or glass sliding doors > No cabling to socket required for operation
> Tambour doors > Low-cost variant
> Drawers > Easy to install
Advantages of mains operation Continue to step 1, page 10.89.
> No service interval for battery replacement
> Optional extensions and online connection
Continue to step 1, page 10.89.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

10

Locks

The Dialock electronic access control system has numerous extension options such as connections to online, systems from other
providers and time recording systems.
Your Häfele sales representative and our project specialists will assist in working out a suitable solution.

www.hafele.com/us FC 10.87
