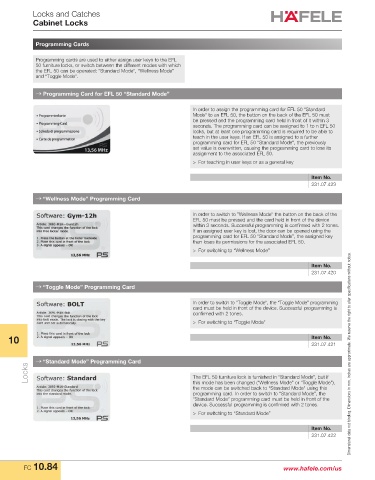

Locks and Catches
Cabinet Locks

Programming Cards

Programming cards are used to either assign user keys to the EFL
50 furniture locks, or switch between the different modes with which
the EFL 50 can be operated: “Standard Mode”, “Wellness Mode”
and “Toggle Mode”.

→ Programming Card for EFL 50 “Standard Mode”

In order to assign the programming card for EFL 50 “Standard
Mode” to an EFL 50, the button on the back of the EFL 50 must
be pressed and the programming card held in front of it within 3
seconds. The programming card can be assigned to 1 to n EFL 50
locks, but at least one programming card is required to be able to
teach in the user keys. If an EFL 50 is assigned to a further
programming card for EFL 50 “Standard Mode”, the previously
set value is overwritten, causing the programming card to lose its
assignment to the associated EFL 50.
> For teaching in user keys or as a general key

Item No.
231.07.423

→ “Wellness Mode” Programming Card

In order to switch to ”Wellness Mode” the button on the back of the
EFL 50 must be pressed and the card held in front of the device
within 3 seconds. Successful programming is confirmed with 2 tones.
If an assigned user key is lost, the door can be opened using the
programming card for EFL 50 “Standard Mode”, the assigned key
then loses its permissions for the associated EFL 50.
> For switching to “Wellness Mode”

Item No.
231.07.420

→ “Toggle Mode” Programming Card

In order to switch to “Toggle Mode”, the “Toggle Mode” programming
card must be held in front of the device. Successful programming is
confirmed with 2 tones.
> For switching to “Toggle Mode”

10 Item No.
231.07.421

→ “Standard Mode” Programming Card Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Locks The EFL 50 furniture lock is furnished in “Standard Mode”, but if

this mode has been changed (“Wellness Mode” or “Toggle Mode”),
the mode can be switched back to “Standard Mode” using this
programming card. In order to switch to “Standard Mode”, the
“Standard Mode” programming card must be held in front of the
device. Successful programming is confirmed with 2 tones.
> For switching to “Standard Mode”

Item No.
231.07.422
