Locks and Catches
Cabinet Locks

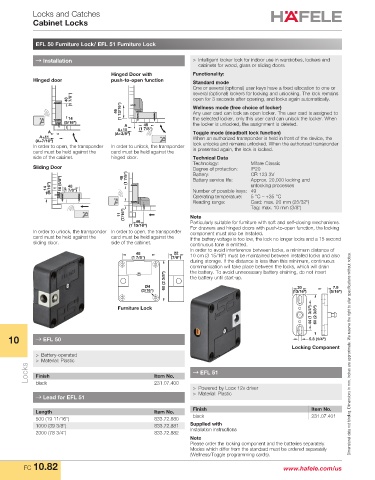

EFL 50 Furniture Lock/ EFL 51 Furniture Lock

→ Installation > Intelligent locker lock for indoor use in wardrobes, lockers and
cabinets for wood, glass or sliding doors
Hinged Door with Functionality:
Hinged door push-to-open function Standard mode
One or several (optional) user keys have a fixed allocation to one or
several (optional) lockers for locking and unlocking. The lock remains
(1 7/8") open for 3 seconds after opening, and locks again automatically.
48
46 (1 13/16") Wellness mode (free choice of locker)
Any user card can lock an open locker. The user card is assigned to
14 the selected locker, only this user card can unlock the locker. When
(9/16") the locker is unlocked, the assignment is deleted.
A 48
A+10
A (A+3/8") (1 7/8") Toggle mode (deadbolt lock function)
A+11 When an authorized transponder is held in front of the device, the
(A+7/16") lock unlocks and remains unlocked. When the authorized transponder
In order to open, the transponder In order to unlock, the transponder is presented again, the lock is locked.
card must be held against the card must be held against the
side of the cabinet. hinged door. Technical Data
Technology: Mifare Classic
Sliding Door Degree of protection: IP20
Battery:
CR 123 3V
unlocking processes

48
14 (9/16") 16 (5/8") (1 7/8") 48 (1 7/8") Battery service life: Approx. 20,000 locking and
Number of possible keys: 49
Operating temperature: 5 °C – +35 °C
Reading range: Card: max. 20 mm (25/32")
Tag: max. 10 mm (3/8")
11 (7/16") Note
46
(1 13/16") Particularly suitable for furniture with soft and self-closing mechanisms.
For drawers and hinged doors with push-to-open function, the locking
In order to unlock, the transponder In order to open, the transponder component must also be installed.
card must be held against the card must be held against the If the battery voltage is too low, the lock no longer locks and a 15 second
EFL 50/EFL 51
EFL50/EFL51
sliding door. side of the cabinet.
locking component
furniture lock continuous tone is emitted.
In order to avoid interference between locks, a minimum distance of
48 22 20 7.9
(1 7/8") (7/8") 10 cm (3 15/16") must be maintained between installed locks and also
(13/16")
(5/16")
during storage. If the distance is less than this minimum, continuous
communication will take place between the locks, which will drain
the battery. To avoid unnecessary battery draining, do not insert
EFL 50/EFL 51
EFL50/EFL51
60 (2 3/8") the battery until start-up. locking component
44 (1 3/4")
60 (2 3/8")
furniture lock
Ø4 48 22 20 7.9
(3/16") (1 7/8") (7/8") (13/16") (5/16")
5.3 (1/4")
Furniture Lock
Ø4 60 (2 3/8") 44 (1 3/4") 60 (2 3/8")
(3/16")
10 → EFL 50 5.3 (1/4")
Locking Component
> Battery-operated Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Plastic
Locks Finish Item No. → EFL 51
black
231.07.400
> Powered by Loox 12v driver
> Material: Plastic
→ Lead for EFL 51
Finish Item No.
Length Item No.
500 (19 11/16") 833.72.880 black 231.07.401
1000 (39 3/8") 833.72.881 Supplied with
Installation instructions
2000 (78 3/4") 833.72.882
Note
Please order the locking component and the batteries separately.
Modes which differ from the standard must be ordered separately
(Wellness/Toggle programming cards).
FC 10.82 www.hafele.com/us
