Locks and Catches
Cabinet Locks

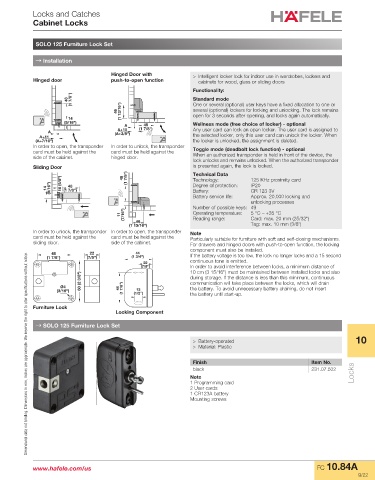

SOLO 125 Furniture Lock Set

→ Installation
Hinged Door with > Intelligent locker lock for indoor use in wardrobes, lockers and
Hinged door push-to-open function cabinets for wood, glass or sliding doors
Functionality:
(1 7/8") Standard mode
48 One or several (optional) user keys have a fixed allocation to one or
46 (1 13/16") several (optional) lockers for locking and unlocking. The lock remains
14 open for 3 seconds after opening, and locks again automatically.
(9/16") Wellness mode (free choice of locker) - optional
A 48
A+10
A (A+3/8") (1 7/8") Any user card can lock an open locker. The user card is assigned to
A+11 the selected locker, only this user card can unlock the locker. When
(A+7/16") the locker is unlocked, the assignment is deleted.
In order to open, the transponder In order to unlock, the transponder Toggle mode (deadbolt lock function) - optional
card must be held against the card must be held against the When an authorized transponder is held in front of the device, the
side of the cabinet. hinged door.
lock unlocks and remains unlocked. When the authorized transponder
Sliding Door is presented again, the lock is locked.
Technical Data
IP20
Degree of protection:
48
14 (9/16") 16 (5/8") (1 7/8") 48 (1 7/8") Technology: 125 KHz proximity card
CR 123 3V
Battery:
Battery service life: Approx. 20,000 locking and
unlocking processes
Number of possible keys: 49
11 (7/16") Operating temperature: 5 °C – +35 °C
Card: max. 20 mm (25/32")
Reading range:
46
(1 13/16") Tag: max. 10 mm (3/8")
In order to unlock, the transponder In order to open, the transponder Note
card must be held against the card must be held against the Particularly suitable for furniture with soft and self-closing mechanisms.
sliding door. side of the cabinet. For drawers and hinged doors with push-to-open function, the locking
component must also be installed.
48 22 44
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1 7/8") (7/8") (1 3/4") If the battery voltage is too low, the lock no longer locks and a 15 second
22 continuous tone is emitted.
(7/8") In order to avoid interference between locks, a minimum distance of
10 cm (3 15/16") must be maintained between installed locks and also
60 (2 3/8") during storage. If the distance is less than this minimum, continuous
communication will take place between the locks, which will drain
Ø4 (1 7/8") the battery. To avoid unnecessary battery draining, do not insert
12
(3/16") 48 (1/2") the battery until start-up.
Furniture Lock
Locking Component
→ SOLO 125 Furniture Lock Set
> Battery-operated 10
> Material: Plastic

Finish Item No.
black 231.07.502
Note Locks
1 Programming card
2 User cards
1 CR123A battery
Mounting screws

www.hafele.com/us FC 10.84A
9/22
