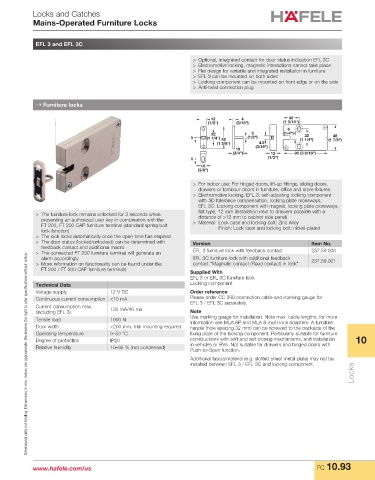

Locks and Catches
Mains-Operated Furniture Locks

EFL 3 and EFL 3C

> Optional, integrated contact for door status indication EFL 3C
> Electromotive locking, magnetic interactions cannot take place
> Flat design for variable and integrated installation in furniture
> EFL 3 can be mounted on both sides
> Locking component can be mounted on front edge or on the side
> Anti-twist connection plug

→ Furniture locks

12 4 30
(1/2") (3/16") (1 3/16")
6
32 3 (1/4") 32
48
0 (1 1/4") 42 (1/8") (1 1/4") (1 7/8")
(1 5/8") 4.5
19 (3/16")
(3/4") 12 90 (3 6/16")
0 (1/2")
10
(3/8")
> For indoor use: For hinged doors, lift-up fittings, sliding doors,
drawers or tambour doors in furniture, office and store fixtures
> Electromotive locking, EFL 3: self-adjusting locking component
with 3D tolerance compensation, locking plate crossways,
EFL 3C: Locking component with magnet, locking plate crossways,
> The furniture lock remains unlocked for 3 seconds when flat type, 12 mm (installation next to drawers possible with a
presenting an authorized user key in combination with the distance of >12 mm to cabinet side panel)
FT 200, FT 200 CAP furniture terminal (standard spring bolt > Material: Lock case and locking bolt: Zinc Alloy
lock function) Finish: Lock case and locking bolt: nickel-plated
> The lock locks automatically once the open time has elapsed
> The door status (locked/unlocked) can be determined with Version Item No.
feedback contact and additional macro
> The connected FT 200 furniture terminal will generate an EFL 3 furniture lock with feedback contact 237.59.000
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
alarm accordingly EFL 3C furniture lock with additional feedback
> More information on functionality can be found under the contact "Magnetic contact (Reed contact) in lock" 237.59.001
FT 200 / FT 200 CAP furniture terminals
Supplied With
EFL 3 or EFL 3C furniture lock
Technical Data Locking component
Voltage supply 12 V DC Order reference
Continuous current consumption <10 mA Please order CC 200 connection cable and marking gauge for
Current consumption max. 130 mA/40 ms EFL 3 / EFL 3C separately.
(including EFL 3) Note
Tensile load 1000 N Use marking gauge for installation. Note max. cable lengths, for more
information see MLA 6P and MLA 8 multi-lock adapters. A furniture
Door width <200 mm, trial mounting required handle (hole spacing 32 mm) can be screwed to the backside of the
Operating temperature 0–50 °C fixing plate of the locking component. Particularly suitable for furniture
Degree of protection IP20 constructions with soft and self closing mechanisms, and installation 10
Relative humidity 10–95 % (not condensed) in vehicles or RVs. Not suitable for drawers and hinged doors with
Push-to-Open function.
Additional fascia/material (e.g. slotted sheet metal plate) may not be
installed between EFL 3 / EFL 3C and locking component.
