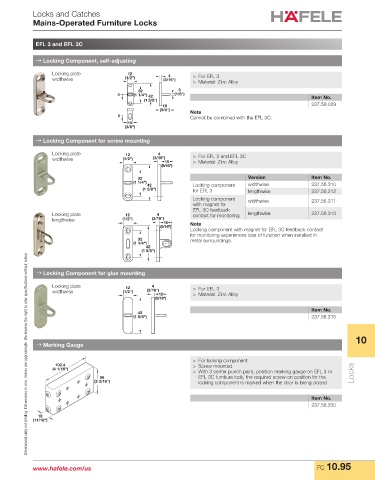

Locks and Catches
Mains-Operated Furniture Locks

EFL 3 and EFL 3C

→ Locking Component, self-adjusting
Locking plate 12 4 > For EFL 3
widthwise (1/2") (3/16") > Material: Zinc Alloy
32 3
0 (1 1/4") 42 (1/8") Item No.
(1 5/8")
19 237.59.029
(3/4") Note
0 Cannot be combined with the EFL 3C.
10
(3/8")

→ Locking Component for screw mounting

Locking plate 12 4
widthwise (1/2") (3/16") 15 > For EFL 3 and EFL 3C
> Material: Zinc Alloy
(9/16")
32 Version Item No.
(1 1/4") 42 Locking component widthwise 237.56.310
(1 5/8") for EFL 3 lengthwise 237.56.312
Locking component widthwise 237.56.311
with magnet for
EFL 3C feedback
Locking plate 12 4 contact for monitoring lengthwise 237.56.313
lengthwise (1/2") (3/16") 15
(9/16") Note
Locking component with magnet for EFL 3C feedback contact
for monitoring experiences loss of function when installed in
32 metal surroundings.
(1 1/4")
42
(1 5/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Locking Component for glue mounting

Locking plate 12 4
widthwise (1/2") (3/16") 15 > For EFL 3
> Material: Zinc Alloy
(9/16")
Item No.
42
(1 5/8") 237.56.315

10
→ Marking Gauge

> For locking component
102.4 > Screw mounted
(4 1/16")
> With 3 center punch pairs, position marking gauge on EFL 3 or Locks
56 EFL 3C furniture lock, the required screw-on position for the
(2 3/16") locking component is marked when the door is being closed
Item No.
237.56.330
18
(11/16")

www.hafele.com/us FC 10.95
