Locks and Catches
Mains-Operated Furniture Locks

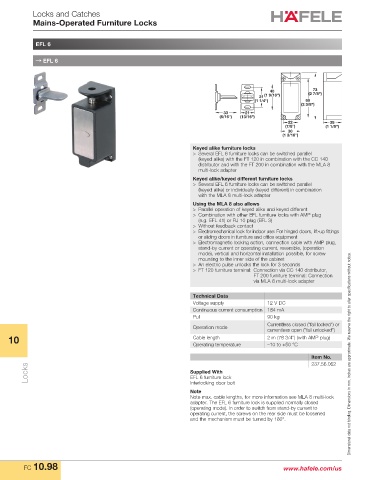

EFL 6

→ EFL 6

73
40 (2 7/8")
31 (1 9/16")
(1 1/4") 60
(2 3/8")
33 21
(5/16") (13/16")
22 29
(7/8") (1 1/8")
30
(1 3/16")
Keyed alike furniture locks
> Several EFL 6 furniture locks can be switched parallel
(keyed alike) with the FT 120 in combination with the CC 140
distributor and with the FT 200 in combination with the MLA 8
multi-lock adapter
Keyed alike/keyed different furniture locks
> Several EFL 6 furniture locks can be switched parallel
(keyed alike) or individually (keyed different) in combination
with the MLA 8 multi-lock adapter
Using the MLA 8 also allows
> Parallel operation of keyed alike and keyed different
> Combination with other EFL furniture locks with AMP plug
(e.g. EFL 41) or RJ 10 plug (EFL 3)
> Without feedback contact
> Electromechanical lock for indoor use: For hinged doors, lift-up fittings
or sliding doors in furniture and office equipment
> Electromagnetic locking action, connection cable with AMP plug,
stand-by current or operating current, reversible, (operation
mode), vertical and horizontal installation possible, for screw
mounting to the inner side of the cabinet
> An electric pulse unlocks the lock for 3 seconds
> FT 120 furniture terminal: Connection via CC 140 distributor,
FT 200 furniture terminal: Connection
via MLA 8 multi-lock adapter

Technical Data
Voltage supply 12 V DC
Continuous current consumption 184 mA
Pull 90 kg
Currentless closed ("fail locked") or
Operation mode
currentless open ("fail unlocked")
10 Cable length 2 m (78 3/4") (with AMP plug)
Operating temperature –10 to +50 °C
Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
237.56.062
Locks Supplied With
EFL 6 furniture lock
Interlocking door bolt
Note
Note max. cable lengths, for more information see MLA 8 multi-lock
adapter. The EFL 6 furniture lock is supplied normally closed
(operating mode). In order to switch from stand-by current to
operating current, the screws on the rear side must be loosened
and the mechanism must be turned by 180°.

FC 10.98 www.hafele.com/us
