Locks and Catches
Pressure Catches

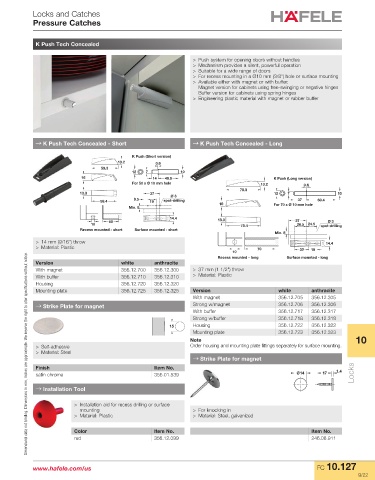

K Push Tech Concealed

> Push system for opening doors without handles
> Mechanism provides a silent, powerful operation
> Suitable for a wide range of doors
> For recess mounting in a Ø10 mm (3/8") hole or surface mounting
> Available either with magnet or with buffer:
Magnet version for cabinets using free-swinging or negative hinges
Buffer version for cabinets using spring hinges
> Engineering plastic material with magnet or rubber buffer

→ K Push Tech Concealed - Short → K Push Tech Concealed - Long

K Push (Short version)
13.2 0.6
59.3
12 7 10
16 14 49.5 K Push (Long version)
For 50 x Ø 10 mm hole 13.2 0.6
78.3
13.3 37 Ø 3 12 7 10
59.4 9.5 19 spot-drilling 16 37 68.4
Min. 8 For 70 x Ø 10 mm hole
14.4
50 13.3 37 Ø 3
10 78.4 26.5 24.5 spot-drilling
Recess mounted - short Surface mounted - short
Min. 8
> 14 mm (9/16") throw 14.4
> Material: Plastic 70 32 19
10
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Recess mounted - long Surface mounted - long
Version white anthracite
With magnet 356.12.700 356.12.300 > 37 mm (1 1/2") throw
With buffer 356.12.710 356.12.310 > Material: Plastic
Housing 356.12.720 356.12.320
Mounting plate 356.12.725 356.12.325 Version white anthracite
With magnet 356.12.705 356.12.305
→ Strike Plate for magnet Strong w/magnet 356.12.706 356.12.306
With buffer 356.12.717 356.12.317
Strong w/buffer 356.12.718 356.12.318
15 Housing 356.12.722 356.12.322
Mounting plate 356.12.723 356.12.323
Note 10
> Self-adhesive Order housing and mounting plate fittings separately for surface mounting.
> Material: Steel
→ Strike Plate for magnet
Finish Item No.
satin chrome 356.01.539 Locks

→ Installation Tool

> Installation aid for recess drilling or surface
mounting > For knocking in
> Material: Plastic > Material: Steel, galvanized

Color Item No. Item No.
red 356.12.099 246.08.911

www.hafele.com/us FC 10.127
9/22
