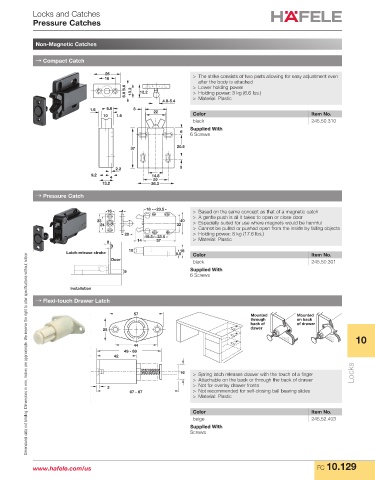

Locks and Catches
Pressure Catches

Non-Magnetic Catches

→ Compact Catch
26 > The strike consists of two parts allowing for easy adjustment even
16
after the body is attached
6.6 > Lower holding power
6.6 13.2 12.2 > Holding power: 3 kg (6.6 lbs.)
> Material: Plastic
4.8-5.4
1.6 6.6 3 22
10 1.6 Color Item No.
black 245.50.310
Supplied With
6
6 Screws
37 20.5

2.2 3
9.2 4 14.8
22
13.2 36.3
→ Pressure Catch

16 4 18 23.5 > Based on the same concept as that of a magnetic catch
> A gentle push is all it takes to open or close door
33 40 > Especially suited for use where magnets would be harmful
24 32
> Cannot be pulled or pushed open from the inside by falling objects
20 19.5 23.5 > Holding power: 8 kg (17.6 lbs.)
8 14 57 > Material: Plastic
3
Latch-release stroke 10 6.5 16 Color Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Door black 245.50.301
Supplied With
9
6 Screws
Installation

→ Flexi-touch Drawer Latch

57 Mounted Mounted
through on back
back of of drawer
25 dawer
10
44
49 - 69
42

16 > Spring latch releases drawer with the touch of a finger Locks
> Attachable on the back or through the back of drawer
> Not for overlay drawer fronts
3
67 - 87 > Not recommended for self-closing ball bearing slides
> Material: Plastic
Color Item No.
beige 245.52.403
Supplied With
Screws

www.hafele.com/us FC 10.129
