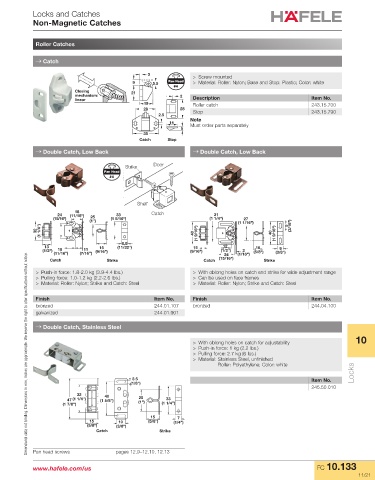

Locks and Catches
Non-Magnetic Catches

Roller Catches

→ Catch

3 > Screw mounted
9 5.5 Pan Head > Material: Roller: Nylon; Base and Stop: Plastic; Color: white
#4
Closing 21
mechanism: 2
linear Description Item No.
19 Roller catch 243.15.700
28 28 Stop 243.15.790
2.5
Note
14 Must order parts separately
5
35
Catch Stop
→ Double Catch, Low Back → Double Catch, Low Back

Strike Door
Pan Head
#4

Shelf
18 Catch
24 (11/16") 33 31
25
(15/16") (1") (1 5/16") (1 1/4") (1 1/16")
27
(1 1/4") 5 (3/16")
32 40 (1 9/16") 40 (1 9/16")
8.8
13 15 (11/32") 15 12 16
(1/2") 18 11 (9/16") (9/16") (1/2") 2 (5/8") 9
(11/16") (7/16") 24 (1/16") (3/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Catch Strike Catch (15/16") Strike
> Push-in force: 1.8-2.0 kg (3.9-4.4 lbs.) > With oblong holes on catch and strike for wide adjustment range
> Pulling force: 1.0-1.2 kg (2.2-2.6 lbs.) > Can be used on face frames
> Material: Roller: Nylon; Strike and Catch: Steel > Material: Roller: Nylon; Strike and Catch: Steel
Finish Item No. Finish Item No.
bronzed 244.01.107 bronzed 244.04.100
galvanized 244.01.901

→ Double Catch, Stainless Steel
10
> With oblong holes on catch for adjustability
> Push-in force: 1 kg (2.2 lbs.)
> Pulling force: 2.7 kg (6 lbs.)
> Material: Stainless Steel, unfinished
Roller: Polyethylene; Color: white

3.5 Item No. Locks
(1/8")
245.50.010
32 40
47 (1 1/4") (1 5/8") 25 33
(1 7/8") (1") (1 1/4")
15 7
15 10 (5/8") (1/4")
(5/8") (3/8")
Catch Strike

Pan head screws pages 12.9–12.10, 12.13
