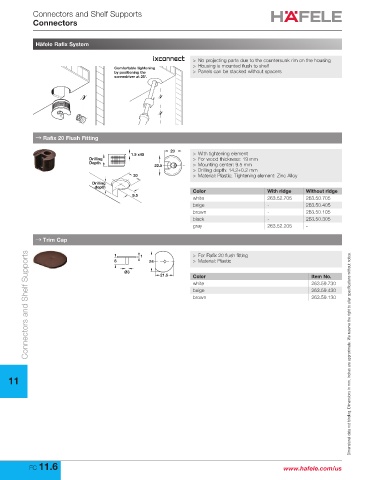

Connectors and Shelf Supports
Connectors
Häfele Rafix System
> No projecting parts due to the countersunk rim on the housing
> Housing is mounted flush to shelf
Comfortable tightening
by positioning the > Panels can be stacked without spacers
screwdriver at 25°.
→ Rafix 20 Flush Fitting
20
1.5 x45 > With tightening element
Drilling > For wood thickness: 19 mm
Depth > Mounting center: 9.5 mm
22.5
> Drilling depth: 14.2+0.2 mm
20 > Material: Plastic; Tightening element: Zinc Alloy
Drilling
depth
Color With ridge Without ridge
9.5
white 263.52.705 263.50.705
beige - 263.50.405
brown - 263.50.105
black - 263.50.305
gray 263.52.205 -
→ Trim Cap
Connectors and Shelf Supports
1 > For Rafix 20 flush fitting
8 24 > Material: Plastic
Ø3
21.5 Color Item No.
white 263.59.730
beige 263.59.430
brown 263.59.130
