Connectors and Shelf Supports
Connectors

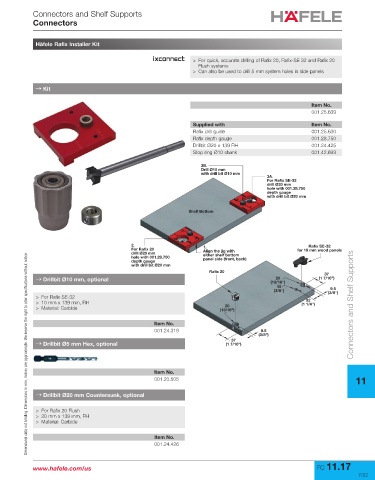

Häfele Rafix Installer Kit

> For quick, accurate drilling of Rafix 20, Rafix-SE 32 and Rafix 20
Flush systems
> Can also be used to drill 5 mm system holes in side panels

→ Kit

Item No.
001.25.639

Supplied with Item No.
Rafix drill guide 001.25.630
Rafix depth gauge 001.28.750
Drillbit Ø20 x 139 RH 001.24.425
Stop ring Ø10 shank 001.42.693

3B.
Drill Ø10 mm
with drill bit Ø10 mm
3A.
For Rafix SE-32
drill Ø20 mm
hole with 001.28.750
depth gauge
with drill bit Ø20 mm
Shelf Bottom

2. 1. Rafix SE-32
For Rafix 20 Align the jig with for 19 mm wood panels

drill Ø20 mm either shelf bottom
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
hole with 001.28.750 panel side (front, back)
depth gauge
with drill bit Ø20 mm
Rafix 20 37
→ Drillbit Ø10 mm, optional 20 (1 7/16")
(13/16")
10
9.5
(3/8") (3/8")
> For Rafix SE-32
32
> 10 mm x 139 mm, RH (1 1/4") Connectors and Shelf Supports
20
> Material: Carbide (13/16")
Item No.
001.24.319 9.5
(3/8")
37
→ Drillbit Ø5 mm Hex, optional (1 7/16")
Item No.
001.20.505 11

→ Drillbit Ø20 mm Countersunk, optional

> For Rafix 20 Flush
> 20 mm x 139 mm, RH
> Material: Carbide

Item No.
001.24.426

www.hafele.com/us FC 11.17
