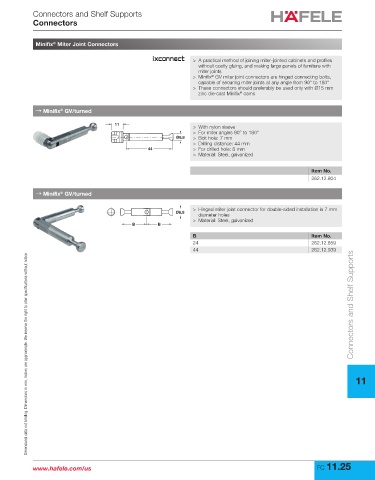

Minifix Miter Joint Connectors
®
> A practical method of joining miter-jointed cabinets and profiles
without costly gluing, and making large panels of furniture with
miter joints
> Minifix GV miter joint connectors are hinged connecting bolts,
®
capable of securing miter joints at any angle from 90° to 180°
> These connectors should preferably be used only with Ø15 mm
zinc die-cast Minifix cams
®
→ Minifix GV/turned
®
11
> With nylon sleeve
> For miter angles 90° to 180°
Ø6.8 > Bolt hole: 7 mm
> Drilling distance: 44 mm
44 > For drilled hole: 8 mm
> Material: Steel, galvanized
Item No.
262.12.804
→ Minifix GV/turned
®
> Hinged miter joint connector for double-sided installation in 7 mm
Ø6.8
diameter holes
> Material: Steel, galvanized
B B
B Item No.
24 262.12.859
44 262.12.939 Connectors and Shelf Supports
