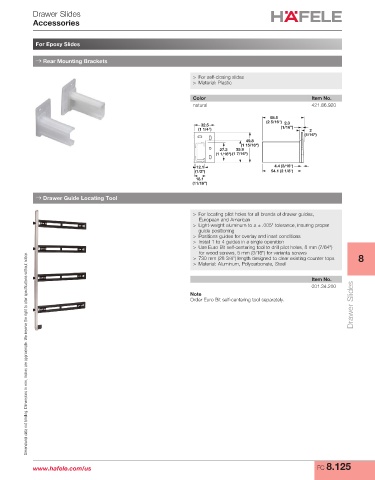

Drawer Slides
Accessories

For Epoxy Slides

→ Rear Mounting Brackets

> For self-closing slides
> Material: Plastic

Color Item No.
natural 421.86.920

58.5
(2 5/16") 2.3
32.5
(1 1/4") (1/16") 2
(1/16")
49.8
(1 15/16")
27.3 35.8
(1 1/16") (1 7/16")
12.1 4.4 (3/16")
(1/2") 54.1 (2 1/8")
18.1
(11/16")

→ Drawer Guide Locating Tool

> For locating pilot holes for all brands of drawer guides,
European and American
> Light-weight aluminum to a ± .005" tolerance, insuring proper
guide positioning
> Positions guides for overlay and inset conditions
> Install 1 to 4 guides in a single operation
> Use Euro Bit self-centering tool to drill pilot holes, 8 mm (7/64")
for wood screws, 5 mm (3/16") for varianta screws
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> 730 mm (28 3/4") length designed to clear existing counter tops 8
> Material: Aluminum, Polycarbonate, Steel
Item No.
Drawer Slides
001.34.200
Note
Order Euro Bit self-centering tool separately.

www.hafele.com/us FC 8.125
