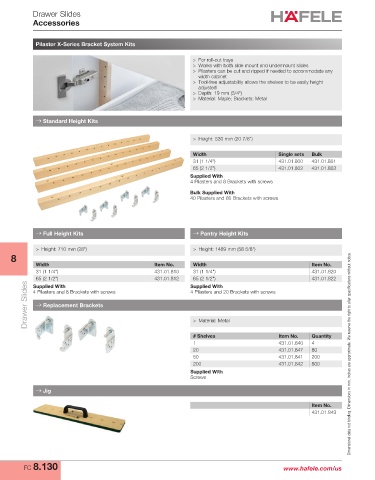

Page 812 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Accessories

Pilaster X-Series Bracket System Kits

> For roll-out trays
> Works with both side mount and undermount slides
> Pilasters can be cut and ripped if needed to accommodate any
width cabinet
> Tool-free adjustability allows the shelves to be easily height
adjusted
> Depth: 19 mm (3/4")
> Material: Maple; Brackets: Metal

→ Standard Height Kits

> Height: 530 mm (20 7/8")

Width Single sets Bulk
31 (1 1/4") 431.01.800 431.01.801
65 (2 1/2") 431.01.802 431.01.803
Supplied With
4 Pilasters and 8 Brackets with screws

Bulk Supplied With
40 Pilasters and 80 Brackets with screws

→ Full Height Kits → Pantry Height Kits

> Height: 710 mm (28") > Height: 1489 mm (58 5/8")
8
Width Item No. Width Item No.
31 (1 1/4") 431.01.810 31 (1 1/4") 431.01.820
65 (2 1/2")
65 (2 1/2") 431.01.812 Supplied With 431.01.822
Drawer Slides 4 Pilasters and 8 Brackets with screws 4 Pilasters and 20 Brackets with screws
Supplied With

→ Replacement Brackets

> Material: Metal

# Shelves Item No. Quantity
1 431.01.840 4
20 431.01.847 80
50 431.01.841 200 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
200 431.01.842 800
Supplied With
Screws

→ Jig

Item No.
431.01.843

FC 8.130 www.hafele.com/us
