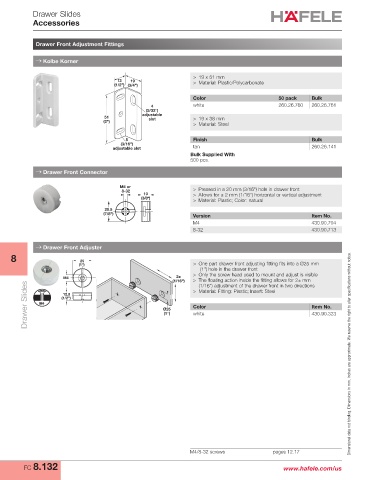

Drawer Slides
Accessories

Drawer Front Adjustment Fittings

→ Kolbe Korner

> 19 x 51 mm
13 19 > Material: Plastic/Polycarbonate
(1/2") (3/4")
Color 50 pack Bulk
4 white 260.26.760 260.26.761
(5/32")
adjustable
51 slot > 19 x 38 mm
(2")
> Material: Steel
5 Finish Bulk
(3/16")
adjustable slot tan 260.26.141
Bulk Supplied With
500 pcs.
→ Drawer Front Connector

M4 or
8-32 > Pressed in a 20 mm (3/16") hole in drawer front
10 > Allows for ± 2 mm (1/16") horizontal or vertical adjustment
(3/8")
> Material: Plastic; Color: natural
20.5
(7/8") Version Item No.
M4 430.90.704
8-32 430.90.713

→ Drawer Front Adjuster
8 25
(1") > One part drawer front adjusting fitting fits into a Ø25 mm
(1") hole in the drawer front
2±
M4 (1/16") > Only the screw head used to mount and adjust is visible
> The floating action inside the fitting allows for 2± mm
Drawer Slides M4 (1/2") Ø25 Color Item No. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1/16") adjustment of the drawer front in two directions
> Material: Fitting: Plastic; Insert: Steel
12.5
white
430.90.323
(1")

M4/8-32 screws pages 12.17
FC 8.132 www.hafele.com/us
