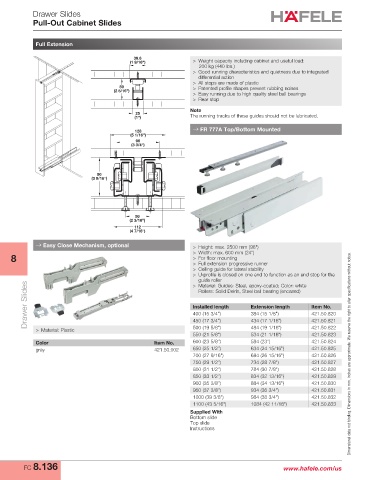

P. 818
Drawer Slides
Pull-Out Cabinet Slides
Full Extension
39.6
(1 9/16") > Weight capacity including cabinet and useful load:
200 kg (440 lbs.)
> Good running characteristics and quietness due to integrated
differential action
> All stops are made of plastic
59 > Patented profile shapes prevent rubbing noises
(2 5/16")
> Easy running due to high quality steel ball bearings
> Rear stop
Note
25
(1") The running tracks of these guides should not be lubricated.
→ FR 777A Top/Bottom Mounted
128
(5 1/16")
96
(3 3/4")
90
(3 9/16")
56
(2 3/16")
112
(4 7/16")
→ Easy Close Mechanism, optional > Height: max. 2500 mm (98")
> Width: max. 600 mm (24")
8 > For floor mounting
> Full extension progressive runner
> Ceiling guide for lateral stability
> U-profile is closed on one end to function as an end stop for the
guide roller
Drawer Slides Installed length Extension length Item No.
> Material: Guides: Steel, epoxy-coated; Color: white
Rollers: Solid Delrin, Steel ball bearing (encased)
384 (15 1/8")
400 (15 3/4")
421.50.820
421.50.822
500 (19 5/8")
484 (19 1/16")
> Material: Plastic 450 (17 3/4") 434 (17 1/16") 421.50.821
550 (21 5/8") 534 (21 1/16") 421.50.823
Color Item No. 600 (23 5/8") 584 (23") 421.50.824
gray 421.50.002 650 (25 1/2") 634 (24 15/16") 421.50.825
700 (27 9/16") 684 (26 15/16") 421.50.826 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
750 (29 1/2") 734 (28 7/8") 421.50.827
800 (31 1/2") 784 (30 7/8") 421.50.828
850 (33 1/2") 834 (32 13/16") 421.50.829
900 (35 3/8") 884 (34 13/16") 421.50.830
950 (37 3/8") 934 (36 3/4") 421.50.831
1000 (39 3/8") 984 (38 3/4") 421.50.832
1100 (43 5/16") 1084 (42 11/16") 421.50.833
Supplied With
Bottom slide
Top slide
Instructions
FC 8.136 www.hafele.com/us
