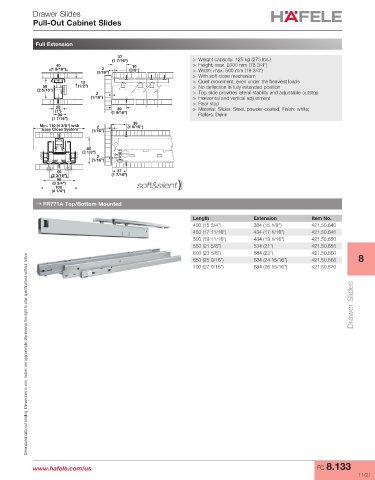

Drawer Slides
Pull-Out Cabinet Slides

Full Extension

37
(1 7/16") > Weight capacity: 125 kg (275 lbs.)
40 10 > Height: max. 2000 mm (78 3/4")
(1 9/16") 2 (3/8") > Width: max. 500 mm (19 3/4")
(1/16")
> With soft close mechanism
13 > Quiet movement, even under the heaviest loads
59 (1/2") > No deflection in fully extended position
(2 5/16")
2 > Top slide provides lateral stability and adjustable outstop
(1/16") > Horizontal and vertical adjustment
> Rear stop
25
39
(1") (1 9/16") > Material: Slides: Steel, powder-coated; Finish: white;
36 Rollers: Delrin
(1 7/16")
39
Min. 110 (4 3/8") with 2 (1 9/16")
Easy Close System (1/16")
80
(3 1/8")
2 2 (1/16")
(1/16")
56 37
(2 3/16") (1 7/16")
96
(3 3/4")
108
(4 1/4")
→ FR771A Top/Bottom Mounted

Length Extension Item No.
400 (15 3/4") 384 (15 1/8") 421.50.640
450 (17 11/16") 434 (17 1/16") 421.50.645
500 (19 11/16") 484 (19 1/16") 421.50.650
550 (21 5/8") 534 (21") 421.50.655
600 (23 5/8") 584 (23") 421.50.660
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
650 (25 9/16") 634 (24 15/16") 421.50.665 8
700 (27 9/16") 684 (26 15/16") 421.50.670

Drawer Slides

www.hafele.com/us FC 8.133
11/21
