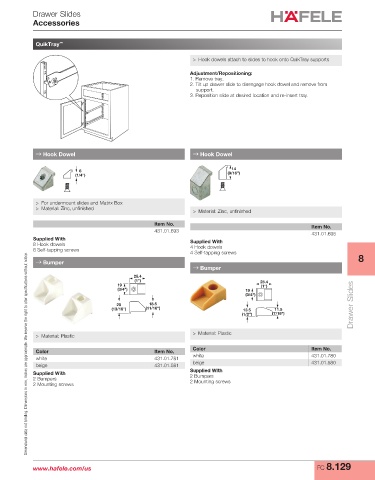

Drawer Slides
Accessories

QuikTray
™

> Hook dowels attach to slides to hook onto QuikTray supports
Adjustment/Repositioning:
1. Remove tray.
2. Tilt up drawer slide to disengage hook dowel and remove from
support.
3. Reposition slide at desired location and re-insert tray.

→ Hook Dowel → Hook Dowel

14
6 (9/16")
(1/4")

> For undermount slides and Matrix Box
> Material: Zinc, unfinished > Material: Zinc, unfinished

Item No. Item No.
431.01.693 431.01.695
Supplied With
8 Hook dowels Supplied With
8 Self-tapping screws 4 Hook dowels
4 Self-tapping screws
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Bumper 8
→ Bumper
25.4
(1") 25.4
19 (1")
(3/4") 19
(3/4")
20 18.5 Drawer Slides
(13/16") (11/16") 13.5 11.5
(1/2") (7/16")

> Material: Plastic
> Material: Plastic

Color Item No. Color Item No.
white 431.01.781 white 431.01.780
beige 431.01.581 beige 431.01.580
Supplied With Supplied With
2 Bumpers
2 Bumpers 2 Mounting screws
2 Mounting screws

www.hafele.com/us FC 8.129
