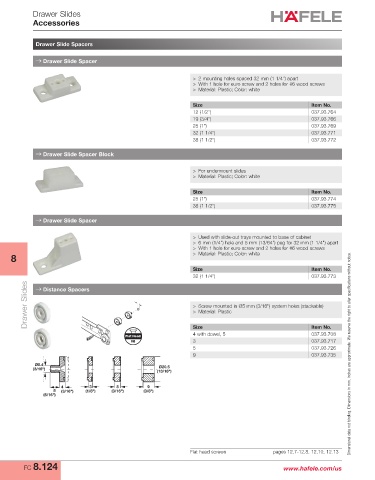

Drawer Slides
Accessories

Drawer Slide Spacers

→ Drawer Slide Spacer

> 2 mounting holes spaced 32 mm (1 1/4") apart
> With 1 hole for euro screw and 2 holes for #6 wood screws
> Material: Plastic; Color: white

Size Item No.
12 (1/2") 037.93.764
19 (3/4") 037.93.766
25 (1") 037.93.769
32 (1 1/4") 037.93.771
38 (1 1/2") 037.93.772

→ Drawer Slide Spacer Block

> For undermount slides
> Material: Plastic; Color: white

Size Item No.
25 (1") 037.93.774
38 (1 1/2") 037.93.775

→ Drawer Slide Spacer

> Used with slide-out trays mounted to base of cabinet
> 6 mm (1/4") hole and 5 mm (13/64") peg for 32 mm (1 1/4") apart
> With 1 hole for euro screw and 2 holes for #6 wood screws
8 > Material: Plastic; Color: white
Size Item No.
32 (1 1/4") 037.93.773
Drawer Slides > Screw mounted in Ø5 mm (3/16") system holes (stackable)
→ Distance Spacers

> Material: Plastic

Size
037.93.708
4 with dowel, 5 Item No.
Flat Head
#6 3 037.93.717
5 037.93.726
9 037.93.735 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø5.4
(3/16") Ø20.5
(13/16")
4 3 5 9
8 (3/16") (1/8") (3/16") (3/8")
(5/16")

Flat head screws pages 12.7-12.8, 12.10, 12.13
