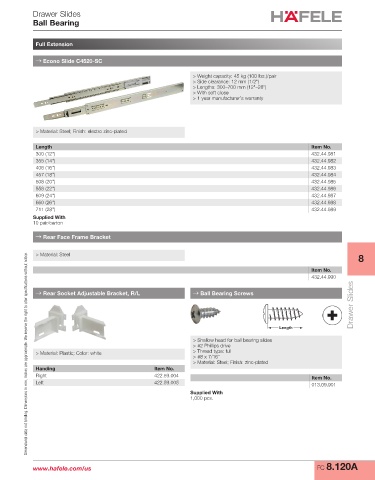

Page 801 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Full Extension

→ Econo Slide C4520-SC

> Weight capacity: 45 kg (100 lbs.)/pair
> Side clearance: 12 mm (1/2")
> Lengths: 300–700 mm (12"–28")
> With soft close
> 1 year manufacturer’s warranty

> Material: Steel; Finish: electro zinc-plated

Length Item No.
300 (12") 432.44.981
355 (14") 432.44.982
406 (16") 432.44.983
457 (18") 432.44.984
508 (20") 432.44.985
558 (22") 432.44.986
609 (24") 432.44.987
660 (26") 432.44.988
711 (28") 432.44.989
Supplied With
10 pair/carton

→ Rear Face Frame Bracket

> Material: Steel
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
Item No.
432.44.990
Drawer Slides
→ Rear Socket Adjustable Bracket, R/L → Ball Bearing Screws

Length

> Shallow head for ball bearing slides
> #2 Phillips drive
> Material: Plastic; Color: white > Thread type: full
> #8 x 7/16"
> Material: Steel; Finish: zinc-plated
Handing Item No.
Right 422.59.004 Item No.
Left 422.59.005 013.09.901
Supplied With
1,000 pcs.

www.hafele.com/us FC 8.120A
