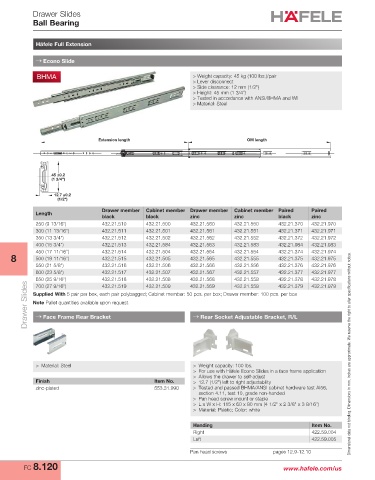

Page 800 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Häfele Full Extension

→ Econo Slide

BHMA > Weight capacity: 45 kg (100 lbs.)/pair
> Lever disconnect
> Side clearance: 12 mm (1/2")
> Height: 45 mm (1 3/4")
> Tested in accordance with ANSI/BHMA and WI
> Material: Steel

Extension length OM length

45 ±0.2
(1 3/4")

12.7 ±0.2
(1/2")
Drawer member Cabinet member Drawer member Cabinet member Paired Paired
Length
black black zinc zinc black zinc
250 (9 13/16") 432.21.510 432.21.500 432.21.560 432.21.550 432.21.370 432.21.970
300 (11 13/16") 432.21.511 432.21.501 432.21.561 432.21.551 432.21.371 432.21.971
350 (13 3/4") 432.21.512 432.21.502 432.21.562 432.21.552 432.21.372 432.21.972
400 (15 3/4") 432.21.513 432.21.584 432.21.563 432.21.583 432.21.984 432.21.983
450 (17 11/16") 432.21.514 432.21.504 432.21.564 432.21.554 432.21.374 432.21.974
8 500 (19 11/16") 432.21.515 432.21.505 432.21.565 432.21.555 432.21.375 432.21.975
550 (21 5/8") 432.21.516 432.21.506 432.21.566 432.21.556 432.21.376 432.21.976
600 (23 5/8") 432.21.517 432.21.507 432.21.567 432.21.557 432.21.377 432.21.977
650 (25 9/16") 432.21.518 432.21.508 432.21.568 432.21.558 432.21.378 432.21.978
Drawer Slides Supplied With 5 pair per box, each pair polybagged; Cabinet member: 50 pcs. per box; Drawer member: 100 pcs. per box
432.21.569
432.21.559
432.21.379
432.21.979
432.21.519
700 (27 9/16")
432.21.509
Note Pallet quantities available upon request.
→ Rear Socket Adjustable Bracket, R/L
→ Face Frame Rear Bracket

> Material: Steel > Weight capacity: 100 lbs. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> For use with Häfele Econo Slides in a face frame application
> Allows the drawer to self-adjust
Finish Item No. > 12.7 (1/2") left to right adjustability
zinc-plated 553.31.990 > Tested and passed BHMA/ANSI cabinet hardware test AI56,
section 4.11, test 10, grade non-handed
> Pan head screw mount or staple
> L x W x H: 115 x 60 x 90 mm (4 1/2" x 2 3/8" x 3 9/16")
> Material: Plastic; Color: white

Handing Item No.
Right 422.59.004
Left 422.59.005

Pan head screws pages 12.9-12.10
FC 8.120 www.hafele.com/us
