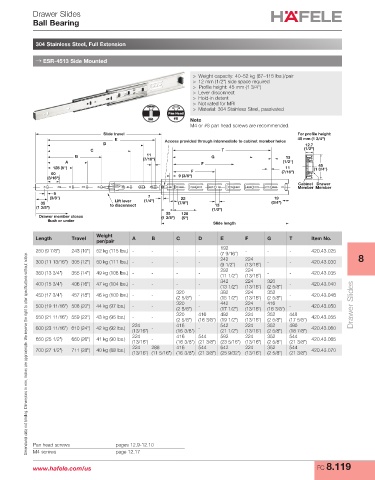

Drawer Slides
Ball Bearing

304 Stainless Steel, Full Extension

→ ESR-4513 Side Mounted

> Weight capacity: 40–52 kg (87–115 lbs.)/pair
> 12 mm (1/2") side space required
> Profile height: 45 mm (1 3/4")
> Lever disconnect
> Hold-in detent
> Not rated for MRI
> Material: 304 Stainless Steel, passivated
Pan Head
M4 #8 Note
M4 or #8 pan head screws are recommended.
Slide travel For profile height:
E Access provided through intermediate to cabinet member holes 45 mm (1 3/4")
D 12.7
C T (1/2")
B 11 G 13
A (7/16") F (1/2")
45
128 (5") 11 (1 3/4")
60 F (7/16")
(3/16") 9 (3/8")
Cabinet Drawer
Member Member
9
(3/8") 7 22 19
Lift lever
35 to disconnect (1/4") (7/8") 13 (3/4")
(1 3/8") (1/2")
35 128
Drawer member closes (1 3/8") (5")
flush or under
Slide length
Weight
Length Travel per/pair A B C D E F G T Item No.
192
250 (9 7/8") 243 (10") 52 kg (115 lbs.) - - - - - - - 420.43.025
(7 9/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
242 224 8
300 (11 13/16") 305 (12") 50 kg (111 lbs.) - - - - - - 420.43.030
(9 1/2") (13/16")
292 224
350 (13 3/4") 355 (14") 49 kg (108 lbs.) - - - - - - 420.43.035
(11 1/2") (13/16")
342 224 320
400 (15 3/4") 406 (16") 47 kg (104 lbs.) - - - - - 420.43.040
(13 1/2") (13/16") (2 5/8")
320 392 224 352
450 (17 3/4") 457 (18") 46 kg (100 lbs.) - - - - 420.43.046
(2 5/8") (15 1/2") (13/16") (2 5/8")
320 442 224 416
500 (19 11/16") 508 (20") 44 kg (97 lbs.) - - - - 420.43.050 Drawer Slides
(2 5/8") (17 1/2") (13/16") (16 3/8")
320 416 492 224 352 448
550 (21 11/16") 559 (22") 43 kg (95 lbs.) - - 420.43.055
(2 5/8") (16 3/8") (19 1/2") (13/16") (2 5/8") (17 5/8")
224 416 542 224 352 480
600 (23 11/16") 610 (24") 42 kg (92 lbs.) - - 420.43.060
(13/16") (16 3/8") (21 1/2") (13/16") (2 5/8") (18 7/8")
224 416 544 592 224 352 544
650 (25 1/2") 660 (26") 41 kg (90 lbs.) - 420.43.065
(13/16") (16 3/8") (21 3/8") (23 5/16") (13/16") (2 5/8") (21 3/8")
224 288 416 544 642 224 352 544
700 (27 1/2") 711 (28") 40 kg (88 lbs.) 420.43.070
(13/16") (11 5/16") (16 3/8") (21 3/8") (25 9/32") (13/16") (2 5/8") (21 3/8")

Pan head screws pages 12.9-12.10
M4 screws page 12.17
