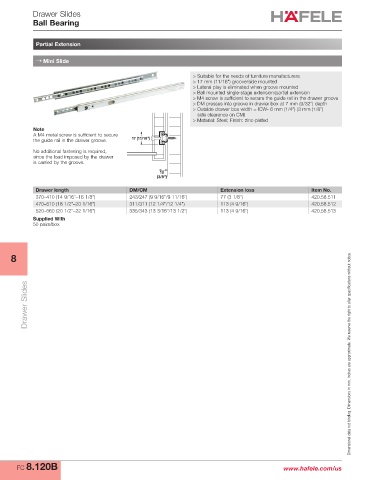

Drawer Slides
Ball Bearing

Partial Extension

→ Mini Slide

> Suitable for the needs of furniture manufacturers
> 17 mm (11/16") groove/side mounted
> Lateral play is eliminated when groove mounted
> Ball mounted single-stage extension/partial extension
> M4 screw is sufficient to secure the guide rail in the drawer groove
> DM presses into groove in drawer box at 7 mm (9/32") depth
> Outside drawer box width = ICW- 6 mm (1/4") (3 mm (1/8")
side clearance on CM)
> Material: Steel; Finish: zinc-plated
Note
A M4 metal screw is sufficient to secure
the guide rail in the drawer groove. 17 (11/16")
No additional fastening is required,
since the load imposed by the drawer
is carried by the groove.

10
(3/8")
Drawer length DM/CM Extension loss Item No.
370–410 (14 9/16"–16 1/8") 243/247 (9 9/16"/9 11/16") 77 (3 1/8") 420.58.511
470–510 (18 1/2"–20 1/16") 311/311 (12 1/4"/12 1/4") 113 (4 9/16") 420.58.512
520–560 (20 1/2"–22 1/16") 335/343 (13 3/16"/13 1/2") 113 (4 9/16") 420.58.513
Supplied With
50 pairs/box

8

Drawer Slides Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 8.120B www.hafele.com/us
