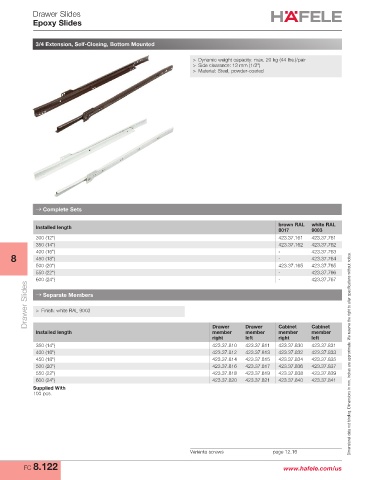

Drawer Slides
Epoxy Slides

3/4 Extension, Self-Closing, Bottom Mounted

> Dynamic weight capacity: max. 20 kg (44 lbs.)/pair
> Side clearance: 13 mm (1/2")
> Material: Steel, powder-coated

→ Complete Sets

brown RAL white RAL
Installed length 8017 9003
300 (12") 423.37.161 423.37.761
350 (14") 423.37.162 423.37.762
400 (16") - 423.37.763
8 450 (18") - 423.37.764
500 (20") 423.37.165 423.37.765
550 (22") - 423.37.766
600 (24") - 423.37.767
Drawer Slides → Separate Members

> Finish: white RAL 9003

member
Installed length Drawer Drawer Cabinet Cabinet
member
member
member
right left right left
350 (14") 423.37.810 423.37.811 423.37.830 423.37.831
400 (16") 423.37.812 423.37.813 423.37.832 423.37.833 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
450 (18") 423.37.814 423.37.815 423.37.834 423.37.835
500 (20") 423.37.816 423.37.817 423.37.836 423.37.837
550 (22") 423.37.818 423.37.819 423.37.838 423.37.839
600 (24") 423.37.820 423.37.821 423.37.840 423.37.841
Supplied With
100 pcs.

Varianta screws page 12.16
FC 8.122 www.hafele.com/us
