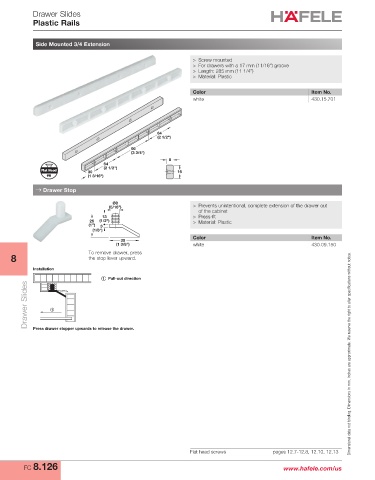

Drawer Slides
Plastic Rails
Side Mounted 3/4 Extension
> Screw mounted
> For drawers with a 17 mm (11/16") groove
> Length: 285 mm (11 1/4")
> Material: Plastic
Color Item No.
white 430.15.701
64
(2 1/2")
96
(3 3/4")
8
64
(2 1/2")
Flat Head 30 16
#6 (1 3/16")
→ Drawer Stop
Ø8
(5/16") > Prevents unintentional, complete extension of the drawer out
of the cabinet
13 > Press-fit
26 (1/2") > Material: Plastic
(1") 3
(1/8")
Color Item No.
35
(1 3/8") white 430.09.150
To remove drawer, press
8 the stop lever upward.
Installation
Pull-out direction
Drawer Slides Press drawer stopper upwards to release the drawer. Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
