Drawer Slides
Accessories

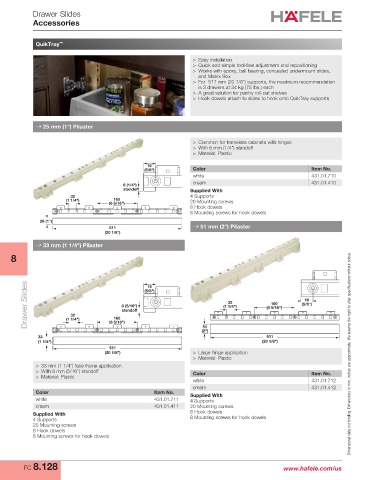

QuikTray
™

> Easy installation
> Quick and simple tool-free adjustment and repositioning
> Works with epoxy, ball bearing, concealed undermount slides,
and Matrix Box
> For 511 mm (20 1/8") supports, the maximum recommendation
is 3 drawers at 34 kg (75 lbs.) each
> A great solution for pantry roll-out shelves
> Hook dowels attach to slides to hook onto QuikTray supports

→ 25 mm (1") Pilaster

> Common for frameless cabinets with hinges
> With 6 mm (1/4") standoff
> Material: Plastic
16
(5/8") Color Item No.
white 431.01.710
cream 431.01.410
6 (1/4")
standoff Supplied With
32 4 Supports
(1 1/4") 160 20 Mounting screws
(6 5/16")
8 Hook dowels
8 Mounting screws for hook dowels
26 (1")
511 → 51 mm (2") Pilaster
(20 1/8")
→ 33 mm (1 1/4") Pilaster

8

Drawer Slides 32 160 8 (5/16") (5/8") (1 1/4") (6 5/16") (5/8")
16

16
32
160
standoff
(1 1/4")
(6 5/16")
51
(2")
33 511
(1 1/4") (20 1/8")
511
(20 1/8") > Large hinge application Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Plastic
> 33 mm (1 1/4") face frame application
> With 8 mm (5/16") standoff Color Item No.
> Material: Plastic
white 431.01.712
cream 431.01.412
Color Item No. Supplied With
white 431.01.711 4 Supports
cream 431.01.411 20 Mounting screws
Supplied With 8 Hook dowels
4 Supports 8 Mounting screws for hook dowels
20 Mounting screws
8 Hook dowels
8 Mounting screws for hook dowels

FC 8.128 www.hafele.com/us
