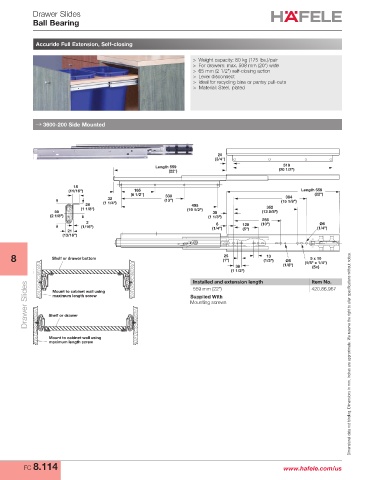

Drawer Slides
Ball Bearing

Accuride Full Extension, Self-closing

> Weight capacity: 80 kg (175 lbs.)/pair
> For drawers: max. 508 mm (20") wide
> 65 mm (2 1/2") self-closing action
> Lever disconnect
> Ideal for recycling bins or pantry pull-outs
> Material: Steel, plated

→ 3600-200 Side Mounted

20
(3/4")
Length 559 519
(22") (20 1/2")

18
(11/16") 165 Length 559
(6 1/2") 330 (22")
32 (13") 384
28 (1 1/4") 495 (15 1/8")
(1 1/8") (19 1/2") 352
55 35 (13 5/8")
(2 1/8") (1 1/3")
256
2 6 (10") Ø6
(1/16") (1/4") 128 (1/4")
21 (5")
(13/16")
8 Shelf or drawer bottom (1") (1/2") Ø5 5 x 10
25
13
38 (1/8") (1/8" x 1/4")
{5x}
(1 1/2") Item No.
Installed and extension length
Drawer Slides Shelf or drawer Supplied With 420.86.967
559 mm (22")
Mount to cabinet wall using
maximum length screw
Mounting screws

Mount to cabinet wall using
maximum length screw Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

FC 8.114 www.hafele.com/us
