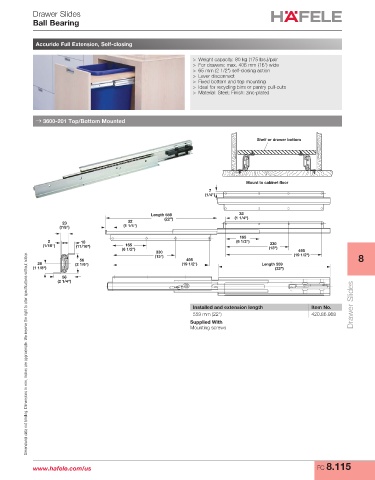

Drawer Slides
Ball Bearing

Accuride Full Extension, Self-closing

> Weight capacity: 80 kg (175 lbs.)/pair
> For drawers: max. 406 mm (16") wide
> 65 mm (2 1/2") self-closing action
> Lever disconnect
> Fixed bottom and top mounting
> Ideal for recycling bins or pantry pull-outs
> Material: Steel; Finish: zinc-plated

→ 3600-201 Top/Bottom Mounted

Shelf or drawer bottom

Mount to cabinet floor
7
(1/4")

Length 559 32
(22") (1 1/4")
23 32
(7/8") (1 1/4")
165
2 18 (6 1/2")
(1/16") (11/16") 165 330
(6 1/2") (13") 495
330
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(13") (19 1/2") 8
56 495
28 (2 1/6") (19 1/2") Length 559
(1 1/8") (22")
58
(2 1/4")
Drawer Slides
Installed and extension length Item No.
559 mm (22") 420.86.968
Supplied With
Mounting screws

www.hafele.com/us FC 8.115
