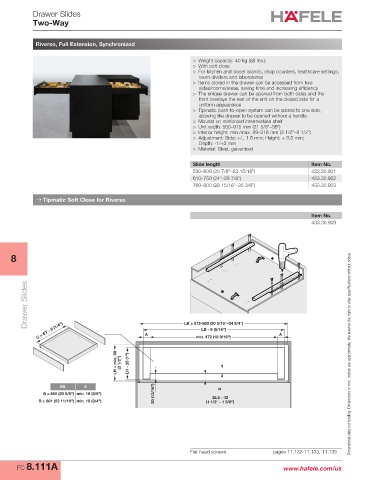

Drawer Slides
Two-Way

Riverso, Full Extension, Synchronized

> Weight capacity: 40 kg (88 lbs.)
> With soft close
> For kitchen and closet islands, shop counters, healthcare settings,
room dividers and laboratories
> Items stored in the drawer can be accessed from two
sides/rooms/areas, saving time and increasing efficiency
> The unique drawer can be opened from both sides and the
front overlays the rest of the unit on the closed side for a
uniform appearance
> Tipmatic push-to-open system can be added to one side,
allowing the drawer to be opened without a handle
> Mounts on reinforced intermediate shelf
> Unit width: 550–915 mm (21 5/8"–36")
> Interior height: min./max. 89–216 mm (3 1/2"–8 1/2")
> Adjustment: Side: +/_ 1.5 mm; Height: + 3.5 mm;
Depth: -1/+3 mm
> Material: Steel, galvanized

Slide length Item No.
530–609 (20 7/8"–23 15/16") 433.30.901
610–759 (24"–29 7/8") 433.30.902
760–900 (29 15/16"–35 3/8") 433.30.903

→ Tipmatic Soft Close for Riverso

Item No.
433.30.909

8

Drawer Slides

C = ET - 6 (1/4") A LB = 512-883 (20 3/16"–34 3/4") A
LB - 8 (5/16")
min. 472 (18 9/16")

LH = min. 89 (3 1/2") LH - 25 (1") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

EB X X
B ≤ 600 (23 5/8") min. 16 (5/8") 20 (13/16")
38.5 - 42
B ≥ 601 (23 11/16") min. 19 (3/4") (1 1/2" - 1 5/8")

Flat head screws pages 11.132-11.133, 11.135
FC 8.111A www.hafele.com/us
