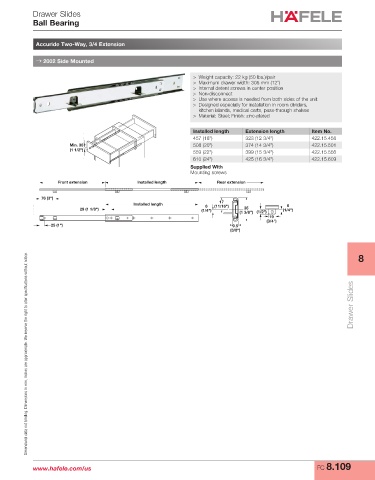

Page 787 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride Two-Way, 3/4 Extension

→ 2002 Side Mounted

> Weight capacity: 22 kg (50 lbs.)/pair
> Maximum drawer width: 305 mm (12")
> Internal detent screws in center position
> Non-disconnect
> Use where access is needed from both sides of the unit
> Designed especially for installation in room dividers,
kitchen islands, medical carts, pass-through shelves
> Material: Steel; Finish: zinc-plated

Installed length Extension length Item No.
457 (18") 323 (12 3/4") 422.15.458
Min. 38 508 (20") 374 (14 3/4") 422.15.501
(1 1/2") 559 (22") 399 (15 3/4") 422.15.556
610 (24") 425 (16 3/4") 422.15.609
Supplied With
Mounting screws

Front extension Installed length Rear extension

76 (3")
Installed length 6 17 6
35
29 (1 1/8") (1/4") (11/16") (1 3/8") (1/2") (1/4")
19
(3/4")
25 (1") 9.5
(3/8")

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8

Drawer Slides

www.hafele.com/us FC 8.109
