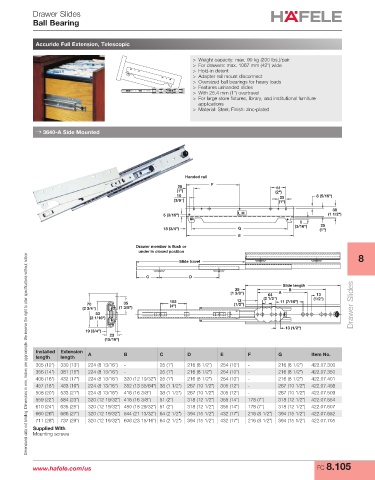

Page 783 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride Full Extension, Telescopic

> Weight capacity: max. 90 kg (200 lbs.)/pair
> For drawers: max. 1067 mm (42") wide
> Hold-in detent
> Adapter rail mount disconnect
> Oversized ball bearings for heavy loads
> Features unhanded slides
> With 25.4 mm (1") overtravel
> For large store fixtures, library, and institutional furniture
applications
> Material: Steel; Finish: zinc-plated

→ 3640-A Side Mounted

Handed rail
25 F 51
(1") (2")
10 25 8 (5/16")
(3/8") (1")
38
L.H.
5 (3/16") (1 1/2")
5
25
18 (3/4") G (3/16") (1")
E
Drawer member is flush or
under in closed position
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
Slide travel
C D
Slide length
35 B
(1 3/8") 64 A 13
13
70 35 102 (1/2") (2 1/2") 11 (7/16") (1/2") Drawer Slides
(4")
(2 3/4") (1 3/8")
53
(2 1/16")
13 (1/2")
19 (3/4")
23
(15/16")
Installed Extension A B C D E F G Item No.
length length
305 (12") 330 (13") 224 (8 13/16") - 25 (1") 216 (8 1/2") 254 (10") - 216 (8 1/2") 422.07.300
356 (14") 381 (15") 224 (8 13/16") - 25 (1") 216 (8 1/2") 254 (10") - 216 (8 1/2") 422.07.350
406 (16") 432 (17") 224 (8 13/16") 320 (12 19/32") 25 (1") 216 (8 1/2") 254 (10") - 216 (8 1/2") 422.07.401
457 (18") 483 (19") 224 (8 13/16") 352 (13 55/64") 38 (1 1/2") 267 (10 1/2") 305 (12") - 267 (10 1/2") 422.07.456
508 (20") 533 (21") 224 (8 13/16") 416 (16 3/8") 38 (1 1/2") 267 (10 1/2") 305 (12") - 267 (10 1/2") 422.07.509
559 (22") 584 (23") 320 (12 19/32") 416 (16 3/8") 51 (2") 318 (12 1/2") 355 (14") 178 (7") 318 (12 1/2") 422.07.554
610 (24") 635 (25") 320 (12 19/32") 480 (18 29/32") 51 (2") 318 (12 1/2") 355 (14") 178 (7") 318 (12 1/2") 422.07.607
660 (26") 686 (27") 320 (12 19/32") 544 (21 13/32") 64 (2 1/2") 394 (15 1/2") 432 (17") 216 (8 1/2") 394 (15 1/2") 422.07.652
711 (28") 737 (29") 320 (12 19/32") 608 (23 15/16") 64 (2 1/2") 394 (15 1/2") 432 (17") 216 (8 1/2") 394 (15 1/2") 422.07.705
Supplied With
Mounting screws

www.hafele.com/us FC 8.105
