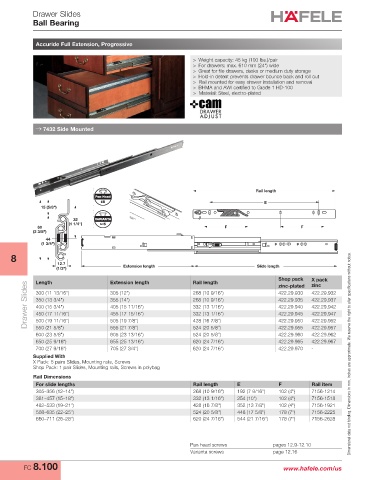

Drawer Slides
Ball Bearing

Accuride Full Extension, Progressive

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> Great for file drawers, desks or medium duty storage
> Hold-in detent prevents drawer bounce back and roll out
> Rail mounted for easy drawer installation and removal
> BHMA and AWI certified to Grade 1 HD-100
> Material: Steel, electro-plated

→ 7432 Side Mounted

Rail length
Pan Head
#8 E
15 (5/8")
32 VARIANTA
(1 1/4") 5
60 F F
(2 3/8")
44
(1 3/4")

8
12.7
(1/2") Extension length Slide length
Shop pack X pack
Rail length
Extension length
Length
Drawer Slides 300 (11 13/16") 305 (12") 268 (10 9/16") 422.29.930 422.29.932
zinc
zinc-plated
350 (13 3/4")
422.29.937
355 (14")
268 (10 9/16")
422.29.935
422.29.940
405 (15 11/16")
332 (13 1/16")
400 (15 3/4")
422.29.942
422.29.945
332 (13 1/16")
422.29.947
455 (17 15/16")
450 (17 11/16")
500 (19 11/16")
550 (21 5/8")
524 (20 5/8")
555 (21 7/8")
422.29.955
422.29.957
422.29.962
422.29.960
524 (20 5/8")
605 (23 13/16")
600 (23 5/8") 505 (19 7/8") 428 (16 7/8") 422.29.950 422.29.952
650 (25 9/16") 655 (25 13/16") 620 (24 7/16") 422.29.965 422.29.967
700 (27 9/16") 705 (27 3/4") 620 (24 7/16") 422.29.970 -
Supplied With Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
X Pack: 5 pairs Slides, Mounting rails, Screws
Shop Pack: 1 pair Slides, Mounting rails, Screws in polybag
Rail Dimensions
For slide lengths Rail length E F Rail item
305–356 (12–14") 268 (10 9/16") 192 (7 9/16") 102 (4") 7156-1214
381–457 (15–18") 332 (13 1/16") 254 (10") 102 (4") 7156-1518
482–533 (19–21") 428 (16 7/8") 352 (13 7/8") 102 (4") 7156-1921
508–635 (22–25") 524 (20 5/8") 448 (17 5/8") 178 (7") 7156-2225
660–711 (26–28") 620 (24 7/16") 544 (21 7/16") 178 (7") 7156-2628
Pan head screws pages 12.9-12.10
Varianta screws page 12.16
FC 8.100 www.hafele.com/us
