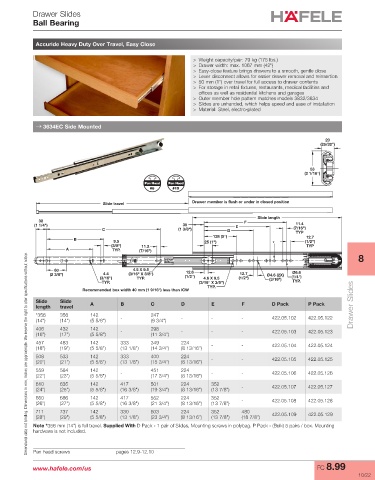

Page 777 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride Heavy Duty Over Travel, Easy Close

> Weight capacity/pair: 79 kg (175 lbs.)
> Drawer width: max. 1067 mm (42")
> Easy-close feature brings drawers to a smooth, gentle close
> Lever disconnect allows for easier drawer removal and reinsertion
> 50 mm (1") over travel for full access to drawer contents
> For storage in retail fixtures, restaurants, medical facilities and
offices as well as residential kitchens and garages
> Outer member hole pattern matches models 3832/3834
> Slides are unhanded, which helps speed and ease of installation
> Material: Steel, electro-plated

→ 3634EC Side Mounted

20
(25/32")

53
(2 1/16")
Pan Head Pan Head
#6 #10

Slide travel Drawer member is flush or under in closed position

Slide length
32 F
(1 1/4") 35 E 11.4
C (1 3/8") D (7/16")
TYP
128 (5") 12.7
B 9.5 25 (1") (1/2")
(3/8") 11.2 * TYP
A TYP. (7/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
60 4.5 X 9.5 12.6
(2 3/8") 4.4 (3/16" X 3/8") (1/2") 12.7 Ø4.6 (2X) Ø6.6
(3/16") TYP. 4.6 X 9.5 (1/2") (3/16") (1/4")
TYP. (3/16" X 3/8") TYP.
TYP.
Recommended box width 40 mm (1 9/16") less than ICW
Slide Slide
length travel A B C D E F D Pack P Pack Drawer Slides
*356 356 142 - 247 - - - 422.05.102 422.05.122
(14") (14") (5 5/8") (9 3/4")
406 432 142 298
(16") (17") (5 5/8") - (11 3/4") - - - 422.05.103 422.05.123
457 483 142 333 349 224 - - 422.05.104 422.05.124
(18") (19") (5 5/8") (13 1/8") (14 3/4") (8 13/16")
508 533 142 333 400 224
(20") (21") (5 5/8") (13 1/8") (15 3/4") (8 13/16") - - 422.05.105 422.05.125
559 584 142 - 451 224 - - 422.05.106 422.05.126
(22") (23") (5 5/8") (17 3/4") (8 13/16")
610 635 142 417 501 224 352
(24") (25") (5 5/8") (16 3/8") (19 3/4") (8 13/16") (13 7/8") - 422.05.107 422.05.127
660 686 142 417 552 224 352 - 422.05.108 422.05.128
(26") (27") (5 5/8") (16 3/8") (21 3/4") (8 13/16") (13 7/8")
711 737 142 330 603 224 352 480
(28") (29") (5 5/8") (13 1/8") (23 3/4") (8 13/16") (13 7/8") (18 7/8") 422.05.109 422.05.129
Note *356 mm (14") is full travel. Supplied With D Pack - 1 pair of Slides, Mounting screws in polybag. P Pack - (Bulk) 5 pairs / box. Mounting
hardware is not included.

Pan head screws pages 12.9-12.10
