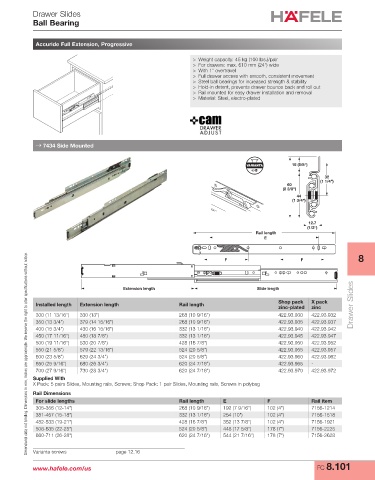

Drawer Slides
Ball Bearing

Accuride Full Extension, Progressive

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> With 1" overtravel
> Full drawer access with smooth, consistent movement
> Steel ball bearings for increased strength & stability
> Hold-in detent, prevents drawer bounce back and roll out
> Rail mounted for easy drawer installation and removal
> Material: Steel, electro-plated

→ 7434 Side Mounted

VARIANTA 15 (5/8")
5
32
(1 1/4")
60
(2 3/8")
44
(1 3/4")

12.7
(1/2")
Rail length
E

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
F F

Extension length Slide length

Shop pack X pack
Installed length Extension length Rail length zinc-plated zinc Drawer Slides
300 (11 13/16") 330 (13") 268 (10 9/16") 422.93.930 422.93.932
350 (13 3/4") 379 (14 15/16") 268 (10 9/16") 422.93.935 422.93.937
400 (15 3/4") 430 (16 15/16") 332 (13 1/16") 422.93.940 422.93.942
450 (17 11/16") 480 (18 7/8") 332 (13 1/16") 422.93.945 422.93.947
500 (19 11/16") 530 (20 7/8") 428 (16 7/8") 422.93.950 422.93.952
550 (21 5/8") 579 (22 13/16") 524 (20 5/8") 422.93.955 422.93.957
600 (23 5/8") 629 (24 3/4") 524 (20 5/8") 422.93.960 422.93.962
650 (25 9/16") 680 (26 3/4") 620 (24 7/16") 422.93.965 -
700 (27 9/16") 730 (28 3/4") 620 (24 7/16") 422.93.970 422.93.972
Supplied With
X Pack: 5 pairs Slides, Mounting rails, Screws; Shop Pack: 1 pair Slides, Mounting rails, Screws in polybag
Rail Dimensions
For slide lengths Rail length E F Rail item
305-356 (12-14") 268 (10 9/16") 192 (7 9/16") 102 (4") 7156-1214
381-457 (15-18") 332 (13 1/16") 254 (10") 102 (4") 7156-1518
482-533 (19-21") 428 (16 7/8") 352 (13 7/8") 102 (4") 7156-1921
508-635 (22-25") 524 (20 5/8") 448 (17 5/8") 178 (7") 7156-2225
660-711 (26-28") 620 (24 7/16") 544 (21 7/16") 178 (7") 7156-2628

Varianta screws page 12.16

www.hafele.com/us FC 8.101
