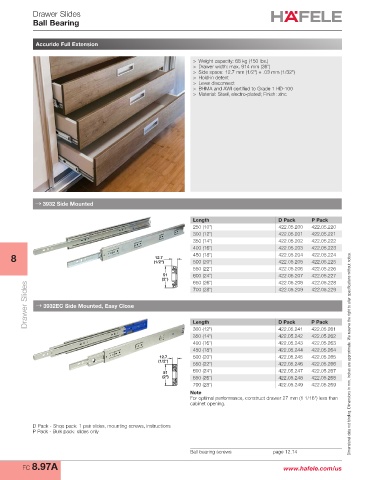

Page 774 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Drawer Slides
Ball Bearing

Accuride Full Extension

> Weight capacity: 68 kg (150 lbs.)
> Drawer width: max. 914 mm (36")
> Side space: 12.7 mm (1/2") + .03 mm (1/32")
> Hold-in detent
> Lever disconnect
> BHMA and AWI certified to Grade 1 HD-100
> Material: Steel, electro-plated; Finish: zinc

→ 3932 Side Mounted

Length D Pack P Pack
250 (10") 422.05.200 422.05.220
300 (12") 422.05.201 422.05.221
350 (14") 422.05.202 422.05.222
400 (16") 422.05.203 422.05.223
8 (1/2") 450 (18") 422.05.204 422.05.224
12.7
500 (20")
422.05.225
422.05.205
550 (22") 422.05.206 422.05.226
51 600 (24") 422.05.207 422.05.227
(2") 650 (26") 422.05.208 422.05.228
Drawer Slides → 3932EC Side Mounted, Easy Close
422.05.229
700 (28")
422.05.209
Length
422.05.241
300 (12")
422.05.261
350 (14") D Pack P Pack
422.05.262
422.05.242
400 (16") 422.05.243 422.05.263
450 (18") 422.05.244 422.05.264
12.7 500 (20") 422.05.245 422.05.265 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(1/2")
550 (22") 422.05.246 422.05.266
51 600 (24") 422.05.247 422.05.267
(2") 650 (26") 422.05.248 422.05.268
700 (28") 422.05.249 422.05.269
Note
For optimal performance, construct drawer 27 mm (1 1/16") less than
cabinet opening.

D Pack - Shop pack: 1 pair slides, mounting screws, instructions
P Pack - Bulk pack: slides only

Ball bearing screws page 12.14
FC 8.97A www.hafele.com/us
