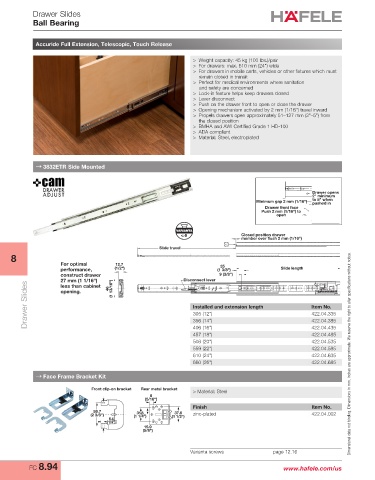

Drawer Slides
Ball Bearing

Accuride Full Extension, Telescopic, Touch Release

> Weight capacity: 45 kg (100 lbs.)/pair
> For drawers: max. 610 mm (24") wide
> For drawers in mobile carts, vehicles or other fixtures which must
remain closed in transit
> Perfect for medical environments where sanitation
and safety are concerned
> Lock-in feature helps keep drawers closed
> Lever disconnect
> Push on the drawer front to open or close the drawer
> Opening mechanism activated by 2 mm (1/16") travel inward
> Propels drawers open approximately 51–127 mm (2"–5") from
the closed position
> BMHA and AWI Certified Grade 1 HD-100
> ADA compliant
> Material: Steel, electroplated

→ 3832ETR Side Mounted

Drawer opens
2" minimum
Minimum gap 2 mm (1/16") to 5" when
pushed in
Drawer front face
Push 2 mm (1/16") to
open
VARIANTA
5 Closed position drawer
member over flush 2 mm (1/16")
Slide travel
8
For optimal 12.7 35
performance, (1/2") (1 3/8") Slide length
construct drawer 9 (3/8")
27 mm (1 1/16") 46 (1 13/16") Disconnect lever
Drawer Slides Installed and extension length Item No.
less than cabinet
opening.

422.04.335
305 (12")
356 (14")
406 (16")
422.04.435
422.04.485
457 (18") 422.04.385
508 (20") 422.04.535
559 (22") 422.04.585
610 (24") 422.04.635 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
660 (26") 422.04.685

→ Face Frame Bracket Kit

Front clip-on bracket Rear metal bracket > Material: Steel
8
(5/16")
Finish Item No.
59.7
37.8
31.8
(2 3/8") (1 1/4") (1 1/2") zinc-plated 422.04.002
6.4
(1/4")
15.9
(5/8")
Varianta screws page 12.16
FC 8.94 www.hafele.com/us
