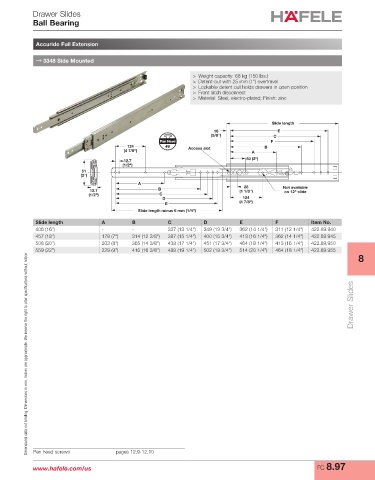

Drawer Slides
Ball Bearing

Accuride Full Extension

→ 3348 Side Mounted

> Weight capacity: 68 kg (150 lbs.)
> Detent-out with 25 mm (1") overtravel
> Lockable detent out holds drawers in open position
> Front latch disconnect
> Material: Steel, electro-plated; Finish: zinc

Slide length
16 E
(5/8") C
Pan Head F
124 #8 Access slot B
(4 7/8") A
12.7 50 (2")
(1/2")
51
(2")
A 28
12.7 B (1 1/8") Not available
on 12" slide
(1/2") C
D 124
E (4 7/8")
Slide length minus 6 mm (1/4")
Slide length A B C D E F Item No.
406 (16") - - 337 (13 1/4") 349 (13 3/4") 362 (14 1/4") 311 (12 1/4") 422.89.940
457 (18") 178 (7") 314 (12 3/8") 387 (15 1/4") 400 (15 3/4") 413 (16 1/4") 362 (14 1/4") 422.89.945
508 (20") 203 (8") 365 (14 3/8") 438 (17 1/4") 451 (17 3/4") 464 (18 1/4") 413 (16 1/4") 422.89.950
559 (22") 229 (9") 416 (16 3/8") 489 (19 1/4") 502 (19 3/4") 514 (20 1/4") 464 (18 1/4") 422.89.955
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8

Drawer Slides

Pan head screws pages 12.9-12.10

www.hafele.com/us FC 8.97
