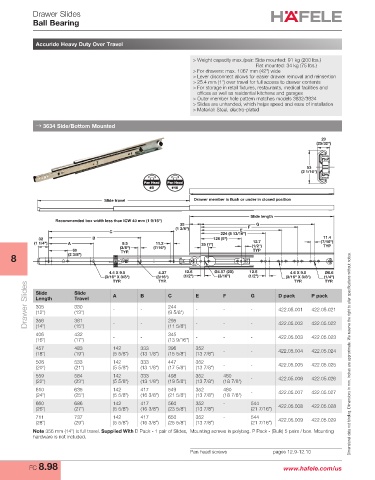

Drawer Slides
Ball Bearing

Accuride Heavy Duty Over Travel

> Weight capacity max./pair: Side mounted: 91 kg (200 lbs.)
Flat mounted: 34 kg (75 lbs.)
> For drawers: max. 1067 mm (42") wide
> Lever disconnect allows for easier drawer removal and reinsertion
> 25.4 mm (1") over travel for full access to drawer contents
> For storage in retail fixtures, restaurants, medical facilities and
offices as well as residential kitchens and garages
> Outer member hole pattern matches models 3832/3834
> Slides are unhanded, which helps speed and ease of installation
> Material: Steel, electro-plated

→ 3634 Side/Bottom Mounted

20
(25/32")

53
(2 1/16")
Pan Head Pan Head
#8 #10
Slide travel Drawer member is flush or under in closed position

Slide length
Recommended box width less than ICW 40 mm (1 9/16")
35 G
(1 3/8") F
E
C 224 (8 13/16")
32 B 128 (5") 11.4
(1 1/4") A 9.5 11.2 25 (1") 12.7 (7/16")
(3/8") (7/16") (1/2") TYP
60 TYP. TYP
8 (2 3/8")
4.4 X 9.5 4.37 12.6 Ø4.57 (2X) 12.6 4.6 X 9.5 Ø6.6
(3/16" X 3/8") (3/16") (1/2") (3/16") (1/2") (3/16" X 3/8") (1/4")
TYP.
TYP.
TYP.
TYP.
Drawer Slides Slide Slide A B C E F - G D pack P pack
Length
Travel
244
330
305
-
422.05.001
-
-
-
422.05.021
(12")
(9 5/8")
(13")
356
(11 5/8")
(14")
(15")
406 381 - - 295 - - - 422.05.002 422.05.022
432
345
(16") (17") - - (13 9/16") - - - 422.05.003 422.05.023
457 483 142 333 396 352 - - 422.05.004 422.05.024
(18") (19") (5 5/8") (13 1/8") (15 5/8") (13 7/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
508 533 142 333 447 352
(20") (21") (5 5/8") (13 1/8") (17 5/8") (13 7/8") - - 422.05.005 422.05.025
559 584 142 333 498 352 480 - 422.05.006 422.05.026
(22") (23") (5 5/8") (13 1/8") (19 5/8") (13 7/8") (18 7/8")
610 635 142 417 549 352 480
(24") (25") (5 5/8") (16 3/8") (21 5/8") (13 7/8") (18 7/8") - 422.05.007 422.05.027
660 686 142 417 560 352 - 544 422.05.008 422.05.028
(26") (27") (5 5/8") (16 3/8") (23 5/8") (13 7/8") (21 7/16")
711 737 142 417 650 352 - 544
(28") (29") (5 5/8") (16 3/8") (25 5/8") (13 7/8") (21 7/16") 422.05.009 422.05.029
Note 356 mm (14") is full travel. Supplied With D Pack - 1 pair of Slides, Mounting screws in polybag. P Pack - (Bulk) 5 pairs / box. Mounting
hardware is not included.
Pan head screws pages 12.9-12.10
